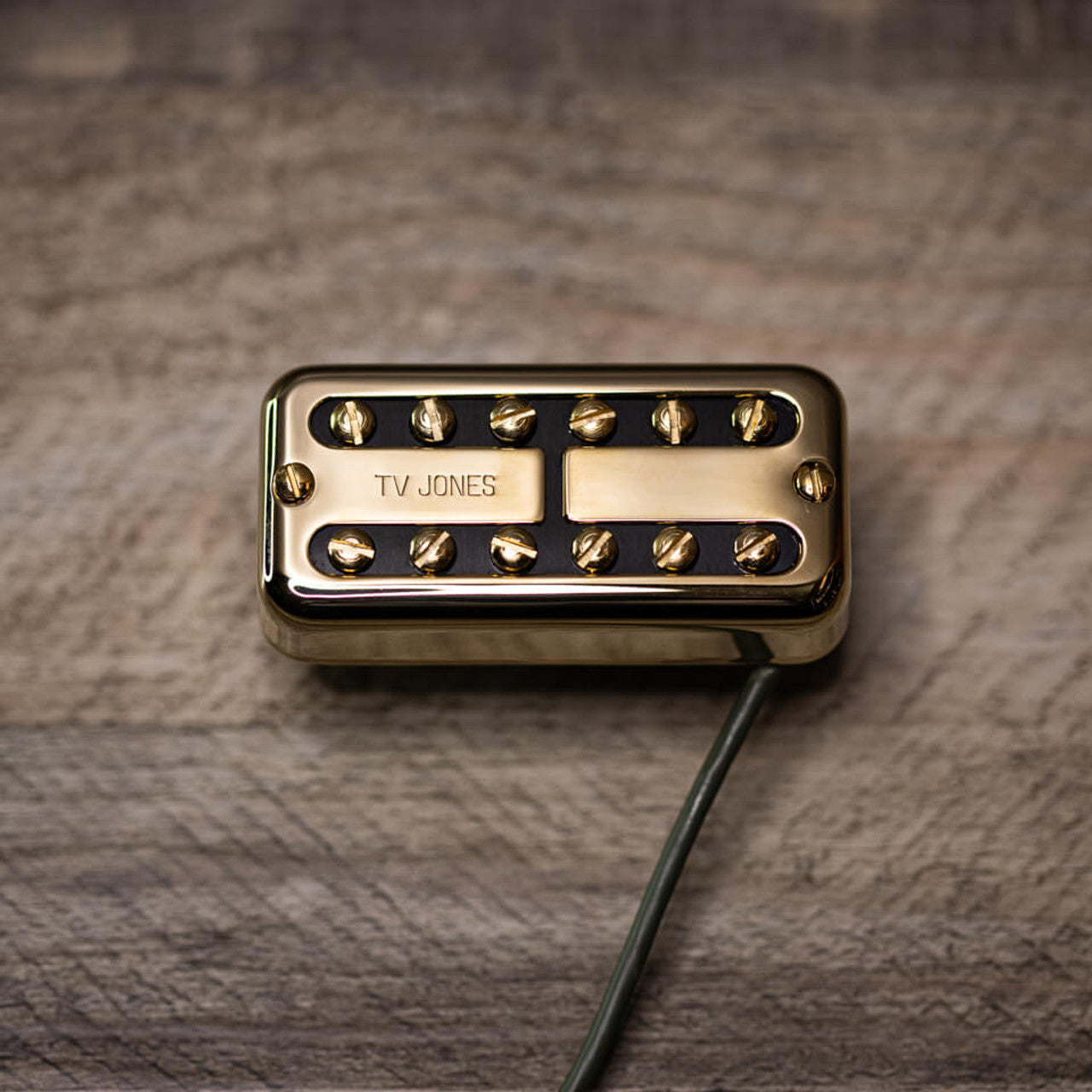

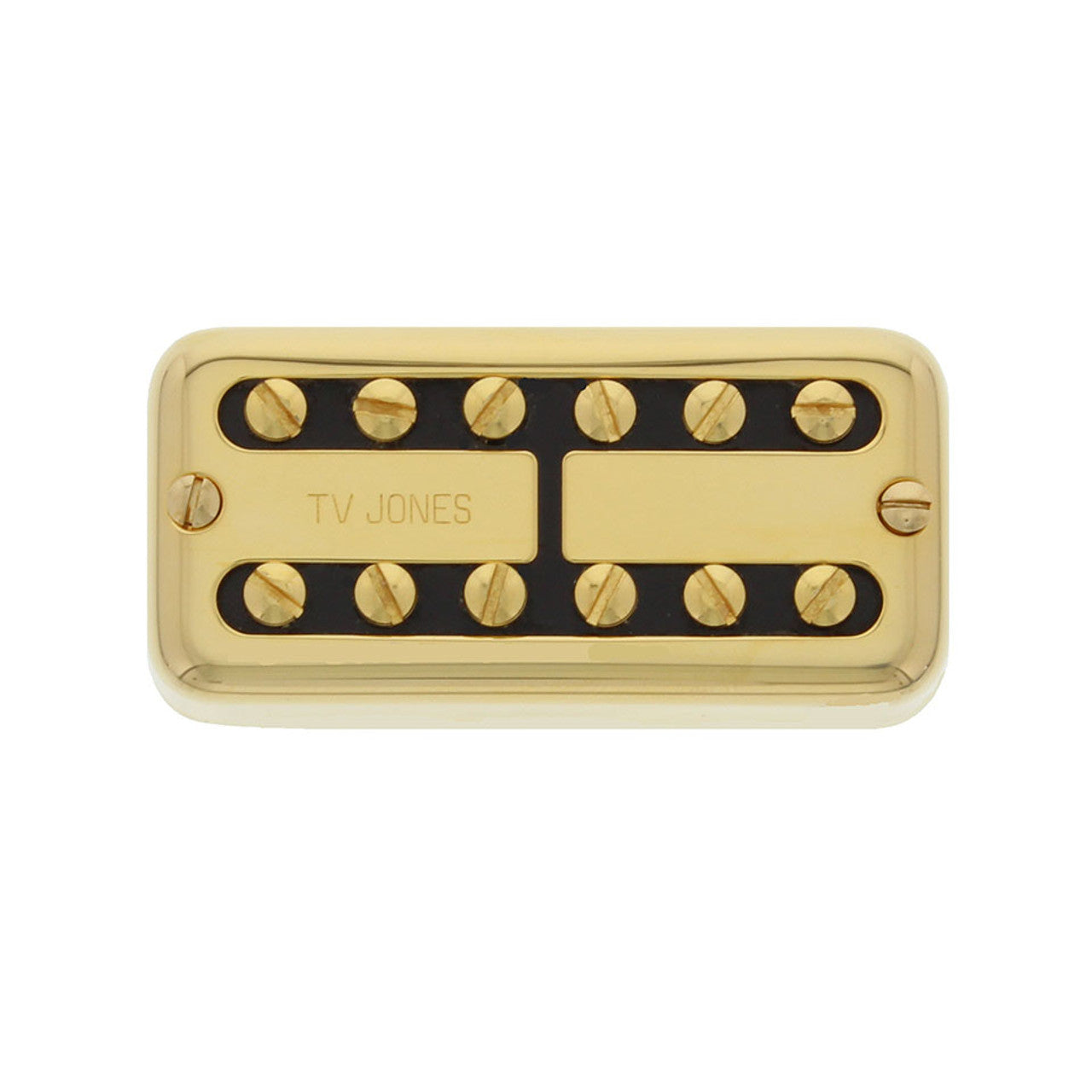

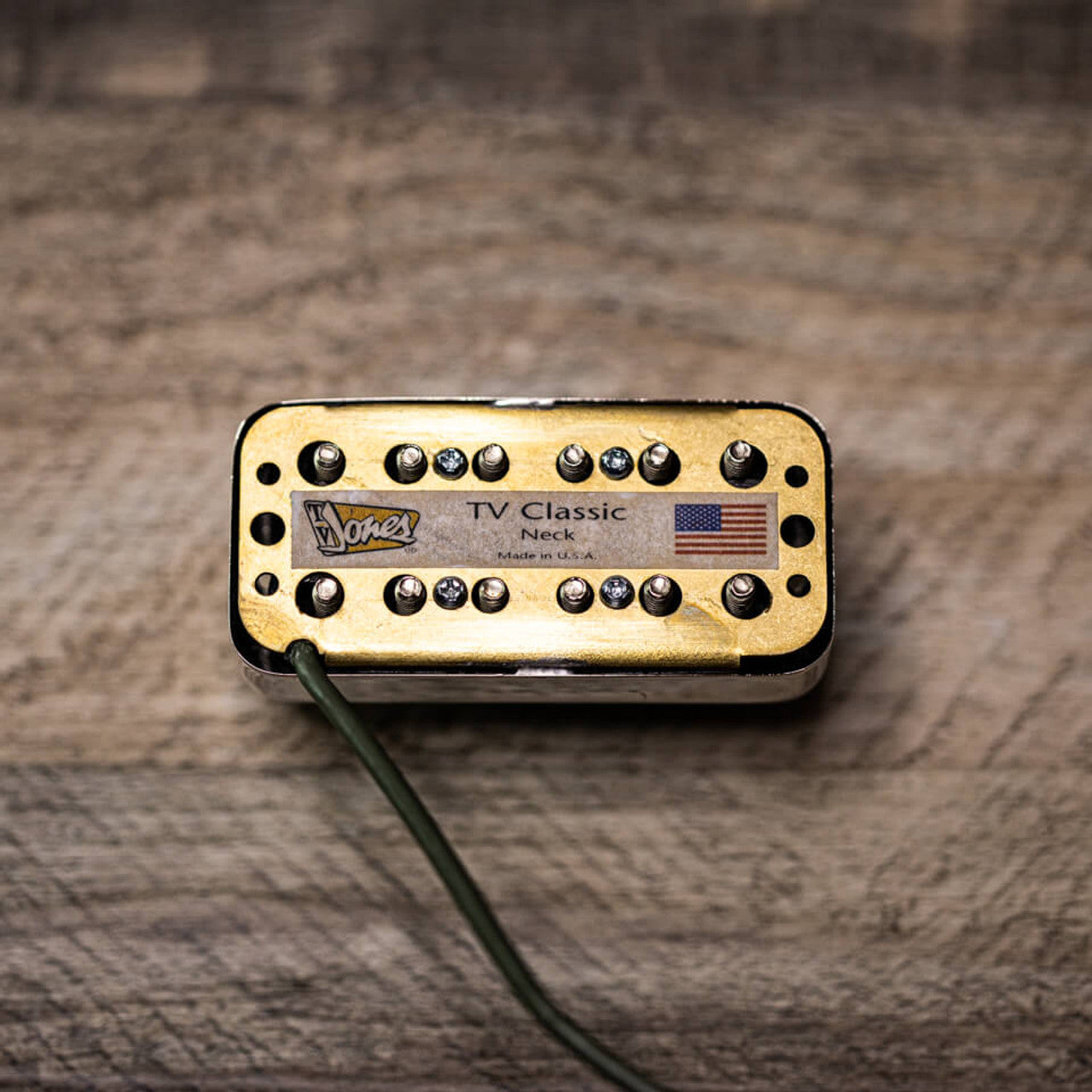

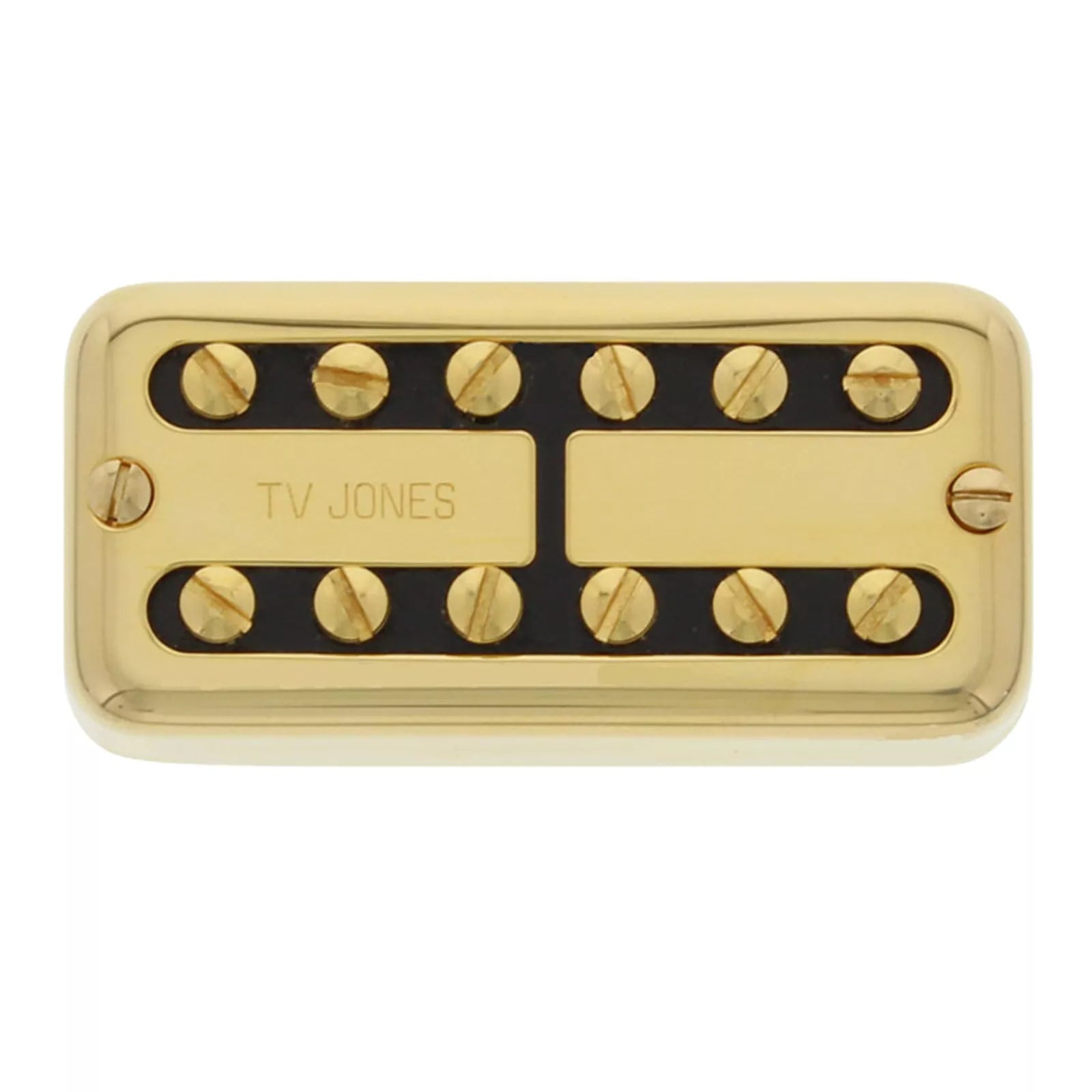

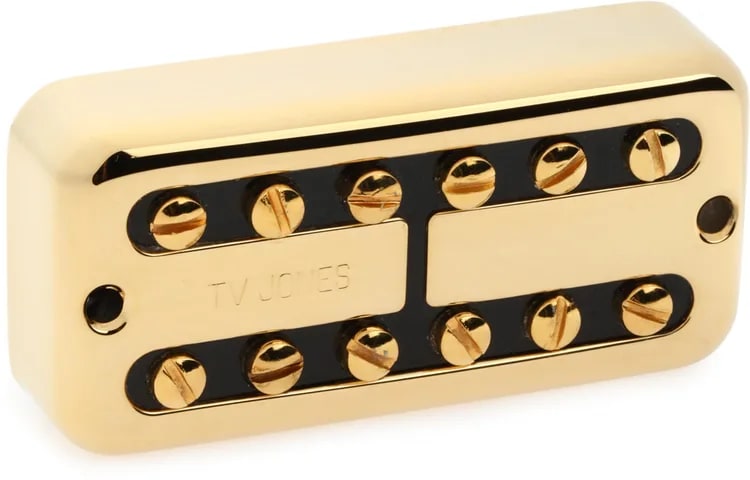

TV Jones TV Classic Neck Humbucker Pickup - Gold - New

TV Jones TV Classic Neck Humbucker Pickup - Gold - New

In brief: Humbucking Neck Pickup with 4.0k DC Resistance and 1.40H Inductance - Gold

The pickup that started it all - the TV Classic captures that vintage twang and growl characteristic of the late 1950's Filter'Tron. Originally designed from an analyzed 1959 "Pat. Applied For" Filter'Tron, the TV Classic is our most popular and most versatile pickup. Popularized and played by many different artists ranging from John Mayer to Brian Setzer.

Tone/Characteristics

Between a typical Fender (bright single-coil) & Gibson (darker & thick humbucker) with a unique growl when you dig in. Clean, compressed treble and mids breath life over a tight and controlled low-end.

Output/Power

DC Resistance is not entirely an indicator of true pickup output, although it can be helpful.

Bridge: DCR - 4.8k / Inductance - 1.83H

Neck: DCR - 4.0k / Inductance - 1.4H

Installation:

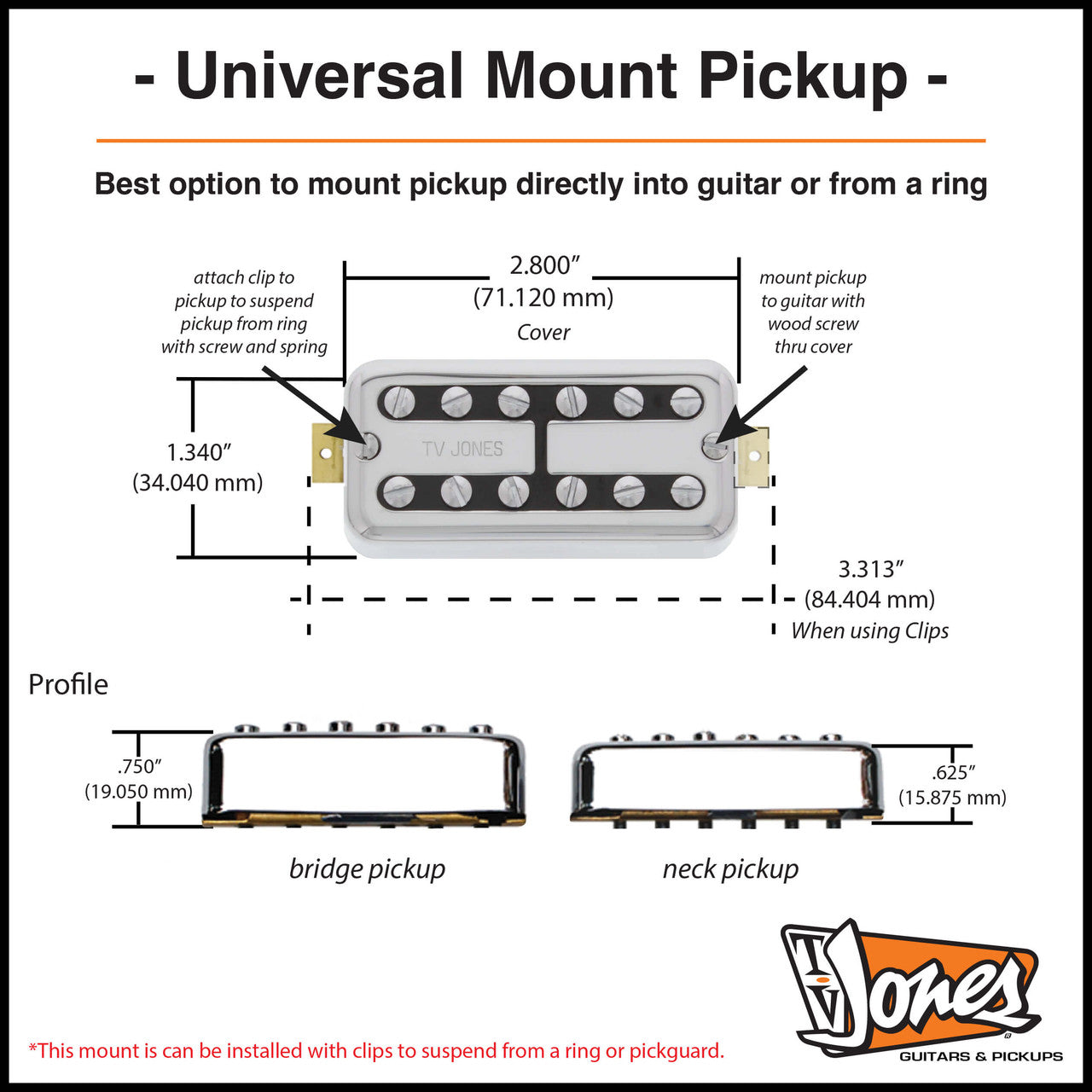

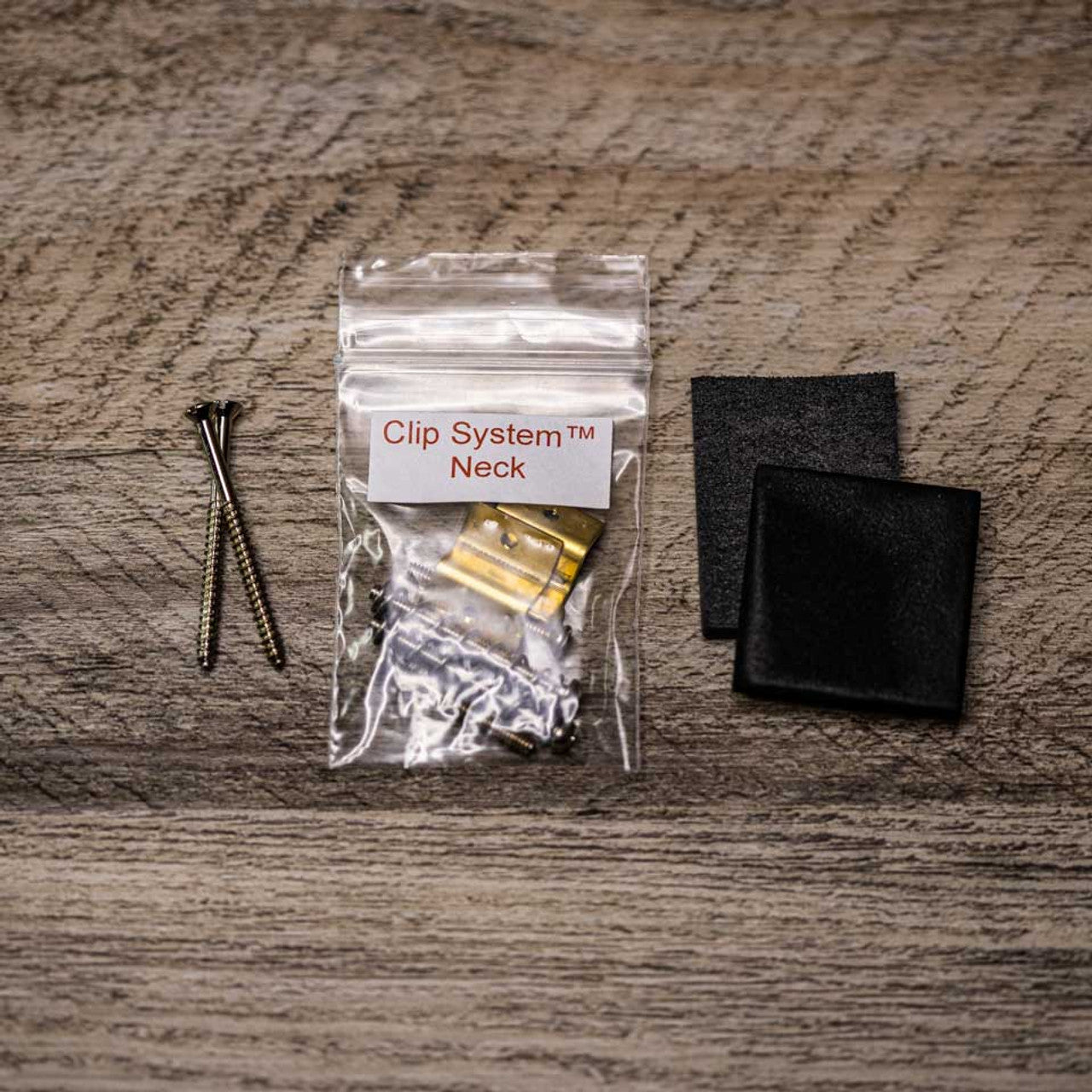

The Universal Mount is a direct drop-in replacement for guitars with standard sized Filter'Trons - with and without "ears" or "clips". This pickup comes standard with two pieces of compression rubber, 2 mounting (wood) screws, and 1 Universal Mount Clip Pack - which includes everything you will need to mount the pickups to a TV Jones ring or pickguard.

The Universal Mount can be installed two different ways:

• As a direct drop-in replacement for guitars with standard sized Filter'Trons – use wood screws and compression rubber
• As a replacement for a humbucker mount pickup – attach clips before installing pickup to ring or pickguard

NOTE: The Universal Mount requires one of the following TV Jones rings (unless suspending from a pickguard)

Wiring Notes

This pickup is shipped with 4-conductor wire but is ready for standard 2-conductor connection. The extra red and green wires come soldered together and taped off - to split coils, send these to ground.

Splitting coils is generally not recommended for this pickup due to low coil output but some say it works well to their taste. 4-Conductor wire is also convenient for custom switching i.e. pickups combined in series or parallel.

Features:

• Free shipping, delivery within 2 to 3 business days or less.
• We are an authorized TV Jones dealer.
• TV Jones's best-selling pickup
• Captures the twang and growl of a vintage Filter'Tron
• Based on the 1959 Ray Butts PAF design
• A mainstay for rock, blues, and country music
• Voiced between a single-coil and humbucker
• Sweet, compressed top end
• Chunky attack
• Clean note separation
• Position: neck
• DC resistance: 4.0k
• Inductance: 1.40H
• Ships with 4-conductor wiring — ready for standard 2-conductor connections
• Each sold separately

Attributes

• Color: Gold

Technical Specifications

• # of Strings: 6
• Position: Neck
• Pickup Type: Humbucker
• Active/Passive: Passive
• # of Conductors: 4
• Quantity: Single
• Magnet Material: Alnico
• DC Resistance: 4.0k
• Format: Filtertron
