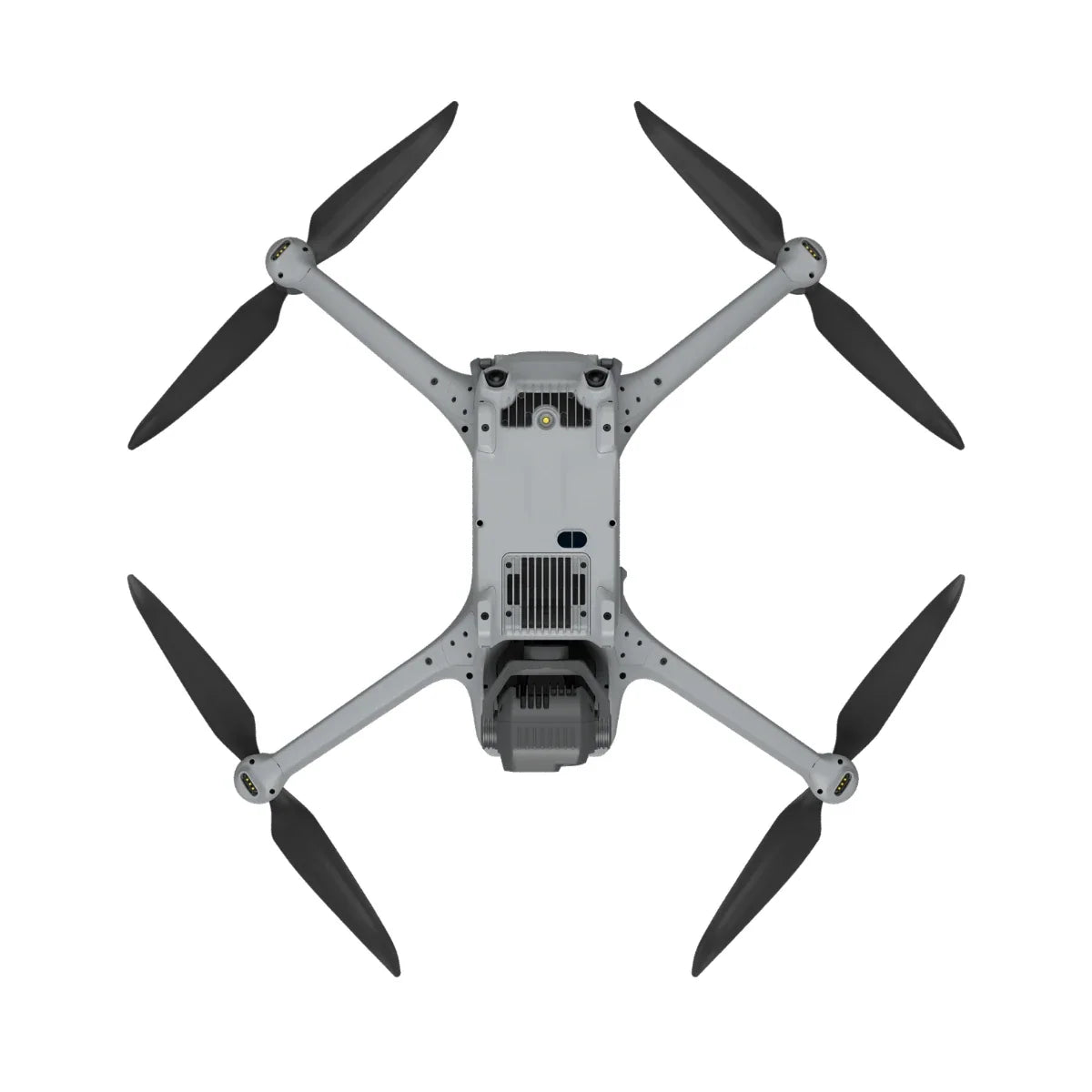

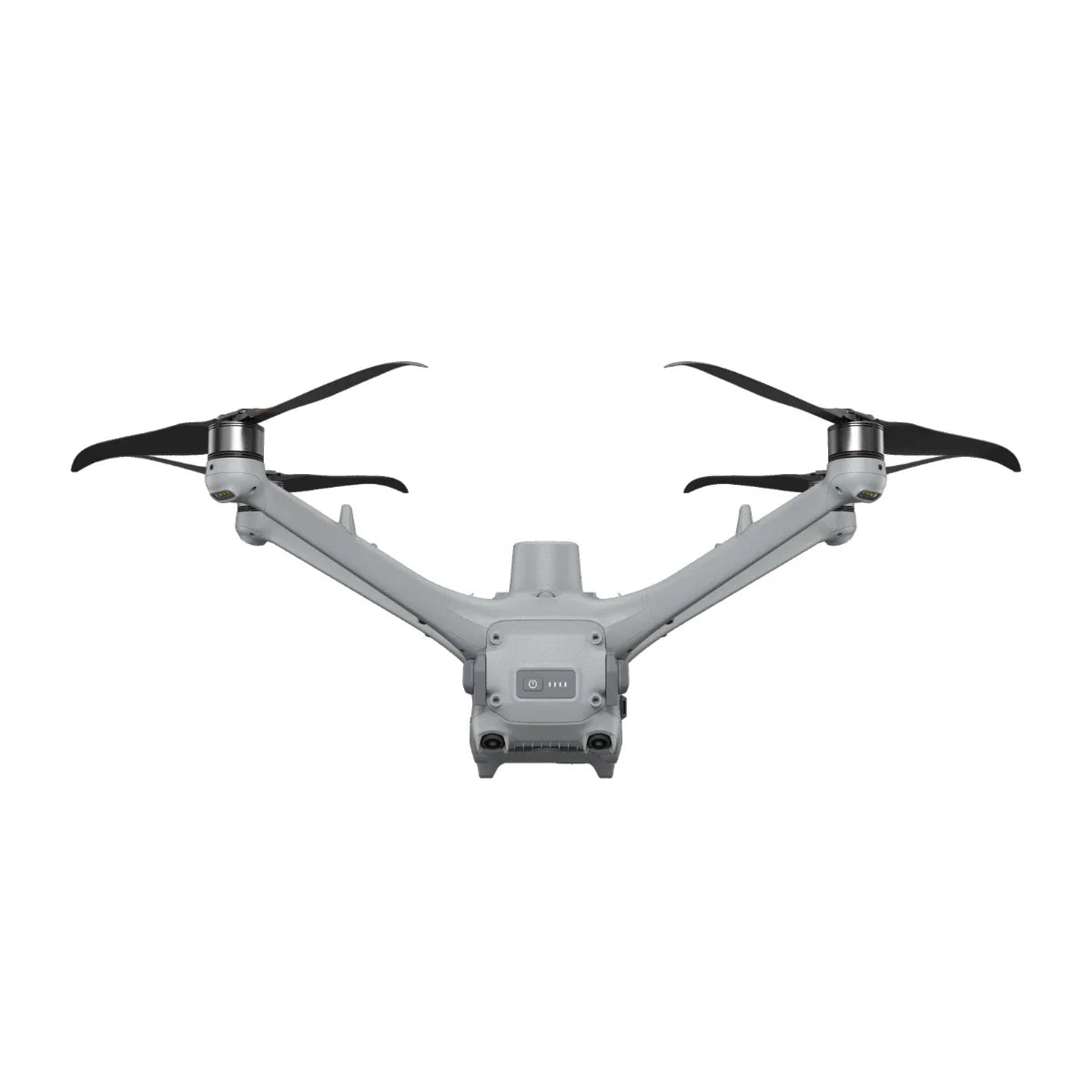

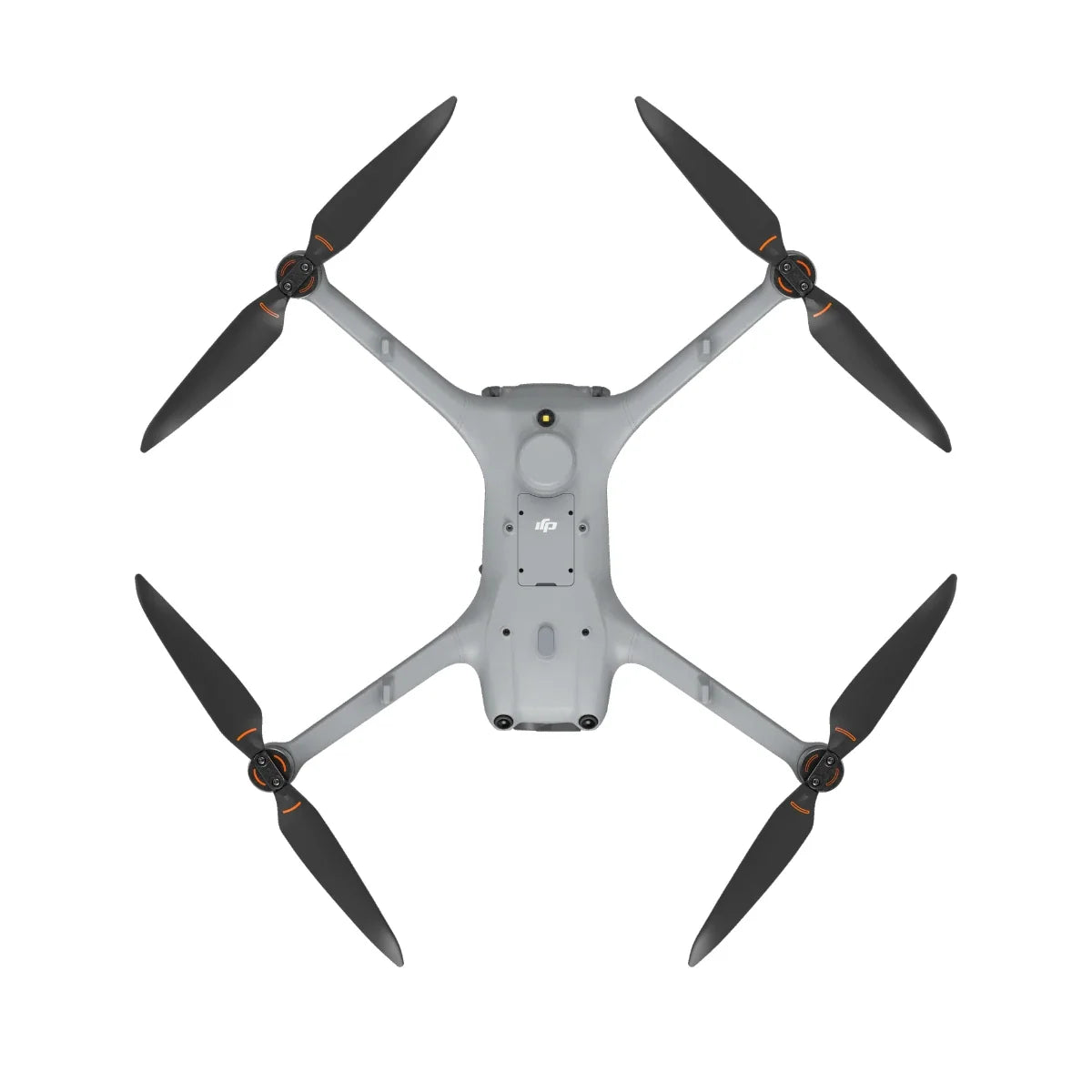

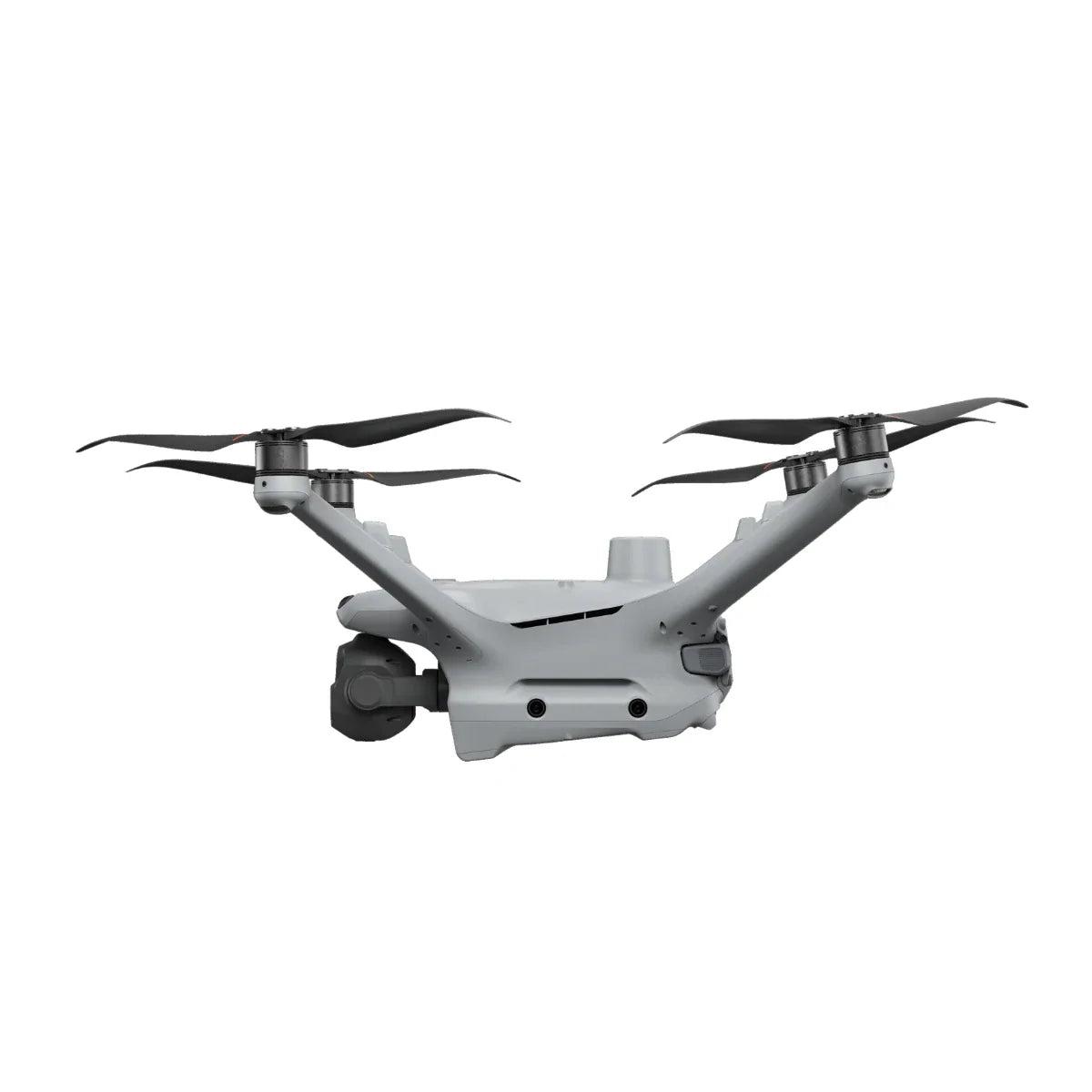

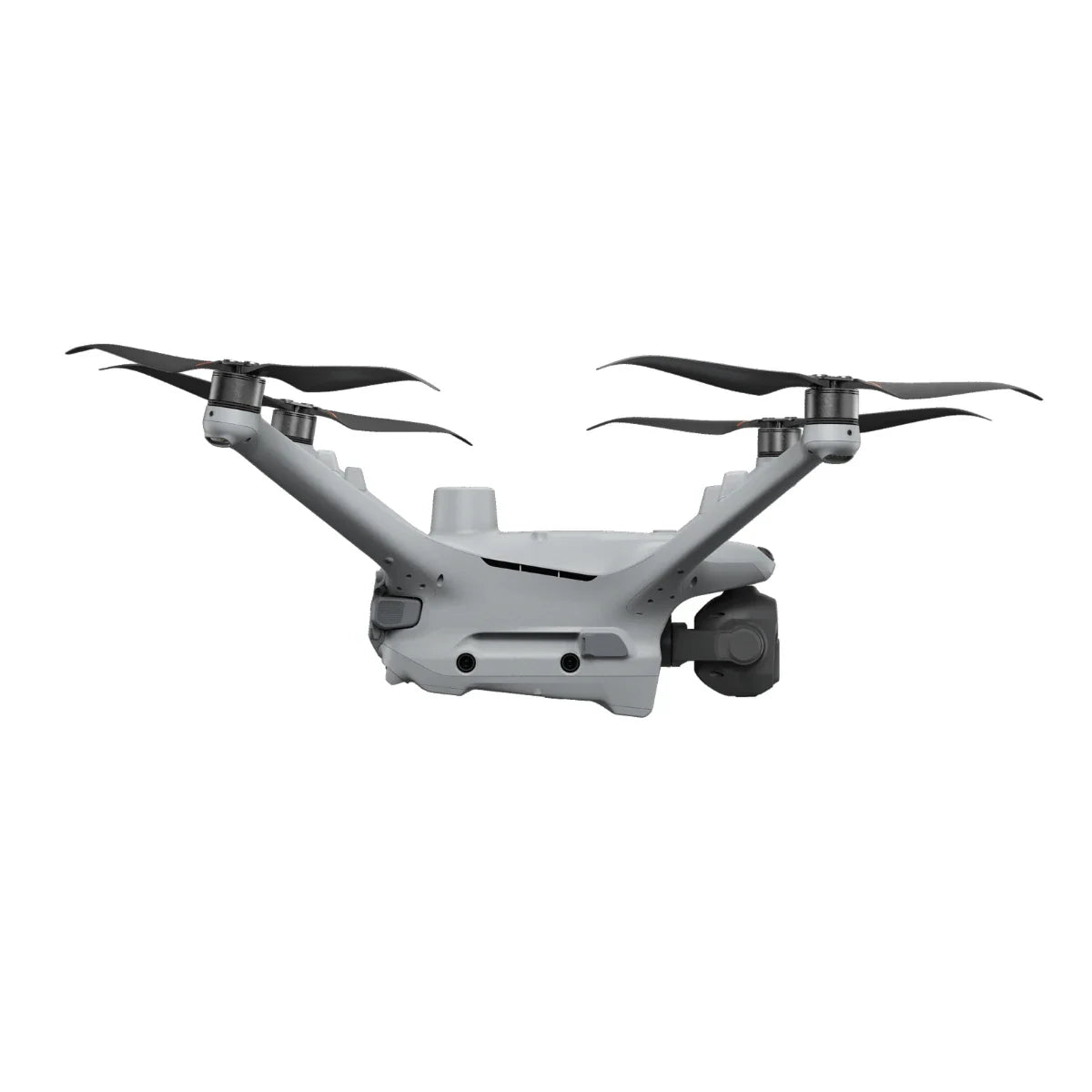

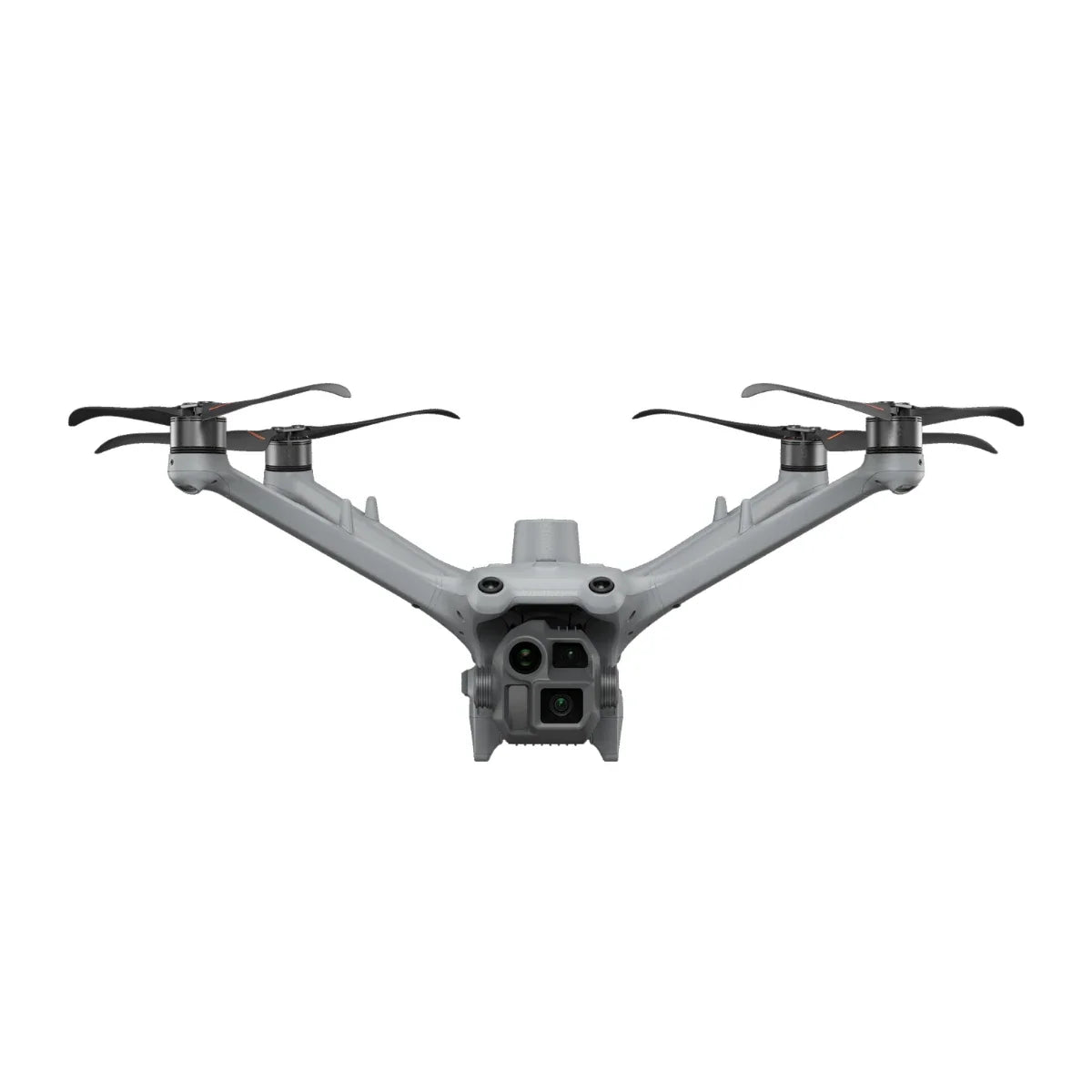

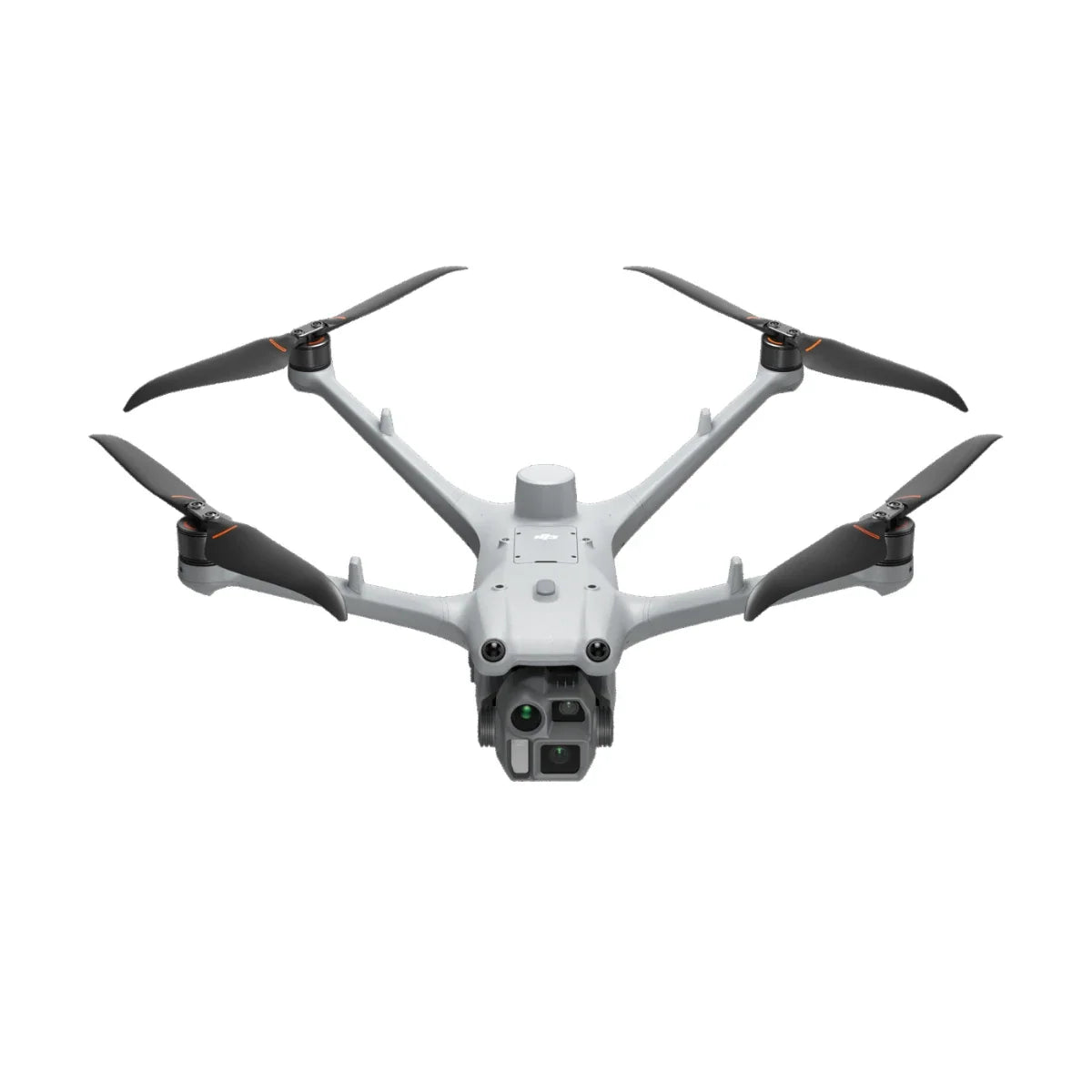

Long-Endurance Tri-Camera Aircraft DJI Matrice 4D (Aircraft Only)

DJI Matrice 4D (Aircraft Only): Long-Endurance Enterprise Drone With Tri-Camera Mapping and Inspection System

The DJI Matrice 4D is an enterprise UAV aircraft designed for long-endurance aerial inspection, mapping, and public safety operations. Built around a tri-camera imaging system and laser range finder, the aircraft enables operators to capture high-resolution visual data and measure distant objects with precision.

With up to 54 minutes of flight time and an IP55-rated airframe, the Matrice 4D is engineered to operate reliably in demanding environments across industries including infrastructure inspection, energy, public safety, and surveying.

This aircraft-only configuration provides the core Matrice 4D platform without the battery or remote controller, allowing organizations to integrate the aircraft into existing enterprise fleets or dock-based systems. The platform supports RTK positioning, advanced obstacle sensing, and the DJI O4 Enterprise transmission system for long-range operations and reliable mission execution.

Key Features and Benefits

• Tri-camera imaging system: wide, medium tele, and tele cameras support inspection and mapping missions
• 4/3 CMOS wide camera: 20 MP sensor with mechanical shutter for photogrammetry workflows
• 48 MP telephoto cameras: medium and long zoom sensors enable detailed remote inspection
• Laser range finder: measures target distance accurately from 1 to 1,800 meters
• Long flight endurance: up to 54 minutes forward flight for extended missions
• IP55-rated airframe: designed for reliable operation in rain, dust, and harsh environments
• RTK positioning system: supports centimeter-level positioning for precision mapping missions
• O4 Enterprise transmission: stable video and control link with extended operational range
• Advanced sensing system: multi-directional vision and infrared sensors support obstacle detection
• Dock compatibility: designed for automated deployment with DJI Dock 3 infrastructure

Extended Endurance for Large-Scale Operations

The Matrice 4D is built to support large-area inspection and mapping missions where endurance, positioning accuracy, and sensor capability are critical. With forward flight endurance reaching 54 minutes, operators can cover larger corridors and infrastructure assets without frequent battery changes.

The integrated RTK module supports centimeter-level positioning accuracy for survey-grade workflows, while the DJI O4 Enterprise transmission system provides reliable command and video links over long distances. Combined with a tri-camera system and laser range finder, the aircraft enables operators to identify, measure, and document assets with precision while maintaining safe standoff distances.

Compatibility and System Integration

• DJI RC Plus 2 Enterprise: required remote controller for standalone aircraft operation
• DJI Dock 3: supports automated drone deployment, landing, and battery charging infrastructure
• DJI Pilot 2: flight control software used for aircraft configuration and mission execution
• DJI FlightHub 2: cloud platform for remote fleet management and mission monitoring
• Custom Network RTK: supports NTRIP service for centimeter-level positioning accuracy
• D-RTK 3 relay station: optional accessory providing enhanced RTK positioning reliability

Applications and Use Cases

• Infrastructure inspection: assess power lines, towers, and bridges using high-resolution tele cameras
• Public safety operations: support search and rescue with long endurance aerial monitoring
• Surveying and mapping: capture precise aerial imagery for photogrammetry and mapping workflows
• Energy sector inspection: monitor oil, gas, and energy infrastructure safely from distance
• Construction monitoring: document site progress and capture accurate aerial project data
• Environmental monitoring: observe wildlife habitats, coastlines, and protected areas remotely

The DJI Matrice 4D provides enterprise operators with a powerful aerial platform capable of performing complex inspection and mapping missions efficiently. Its combination of long flight endurance, precision positioning, and advanced imaging sensors allows teams to gather critical data safely and reliably in demanding operational environments.

With decades of experience supporting professional drone programs, DSLRPros delivers more than aircraft—we provide complete UAV lifecycle support including training, integration, and mission planning expertise.

Purchase the DJI Matrice 4D (Aircraft Only) from DSLRPros to deploy a trusted enterprise aerial platform backed by industry-leading support.

Benefits

• Tri-camera system enables detailed imaging for inspections and mapping
• Laser range finder measures distances accurately up to 1
• 800 meters
• Up to 54 minutes of flight time supports extended aerial operations
• IP55-rated airframe allows operation in dust and rain conditions
• RTK system provides centimeter-level positioning for precision workflows
• O4 Enterprise transmission ensures stable video and control links
• Advanced obstacle sensing enhances flight safety
• Compatible with DJI Dock 3 for automated deployment and charging
