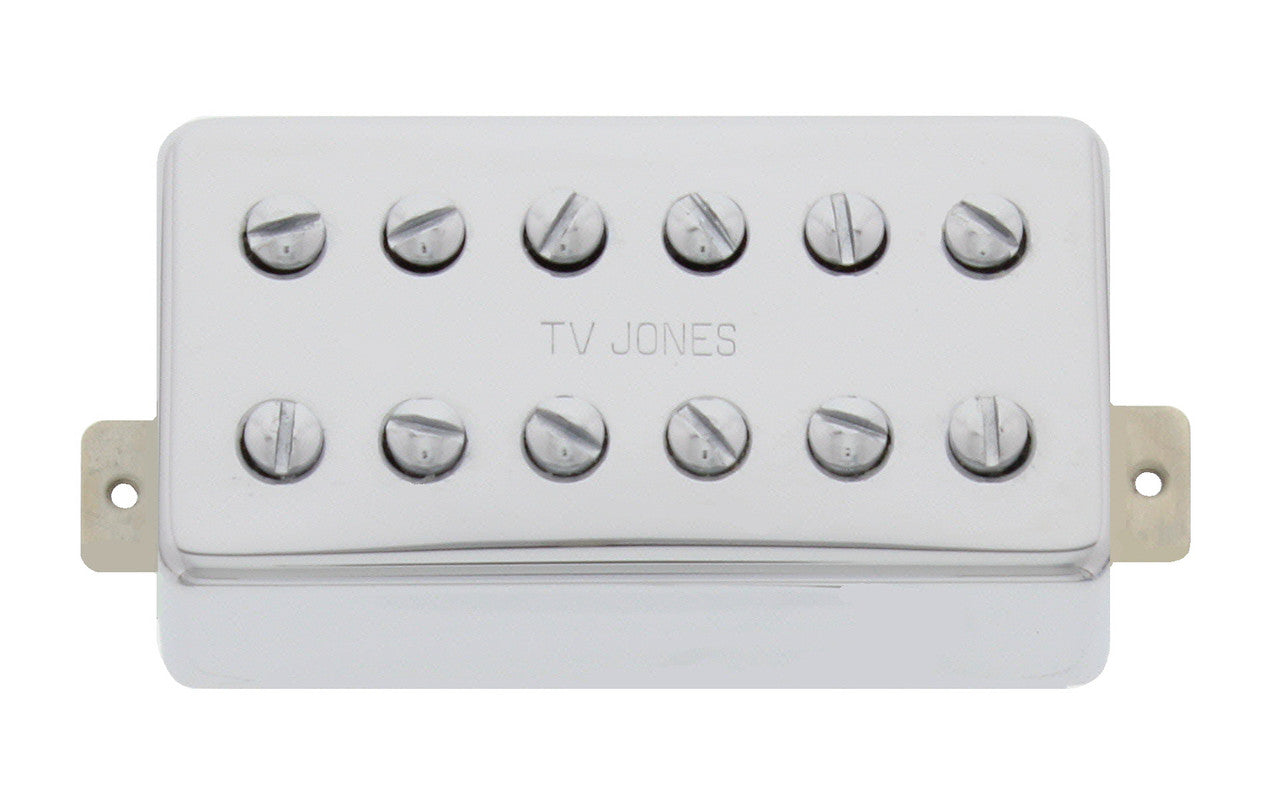

TV Jones TV Classic Neck Humbucker Pickup Mount - Plated Metal Cover-NEW

TV Jones TV Classic Neck Humbucker Pickup Mount - Plated Metal Cover-NEW

In brief: Humbucking Neck Pickup with 4.0k DC Resistance and 1.4H Inductance - Plated Metal Cover with Chrome.

The pickup that started it all - the TV Classic captures that vintage twang and growl characteristic of the late 1950's Filter'Tron. Originally designed from an analyzed 1959 "Pat. Applied For" Filter'Tron, the TV Classic is our most popular and most versatile pickup. Popularized and played by many different artists ranging from John Mayer to Brian Setzer.

Tone/Characteristics

Between a typical Fender (bright single-coil) & Gibson (darker & thick humbucker) with a unique growl when you dig in. Clean, compressed treble and mids breath life over a tight and controlled low-end.

Output/Power

DC Resistance is not entirely an indicator of true pickup output, although it can be helpful.

Bridge: DCR - 4.8k / Inductance - 1.83H

Neck: DCR - 4.0k / Inductance - 1.4H

Installation:

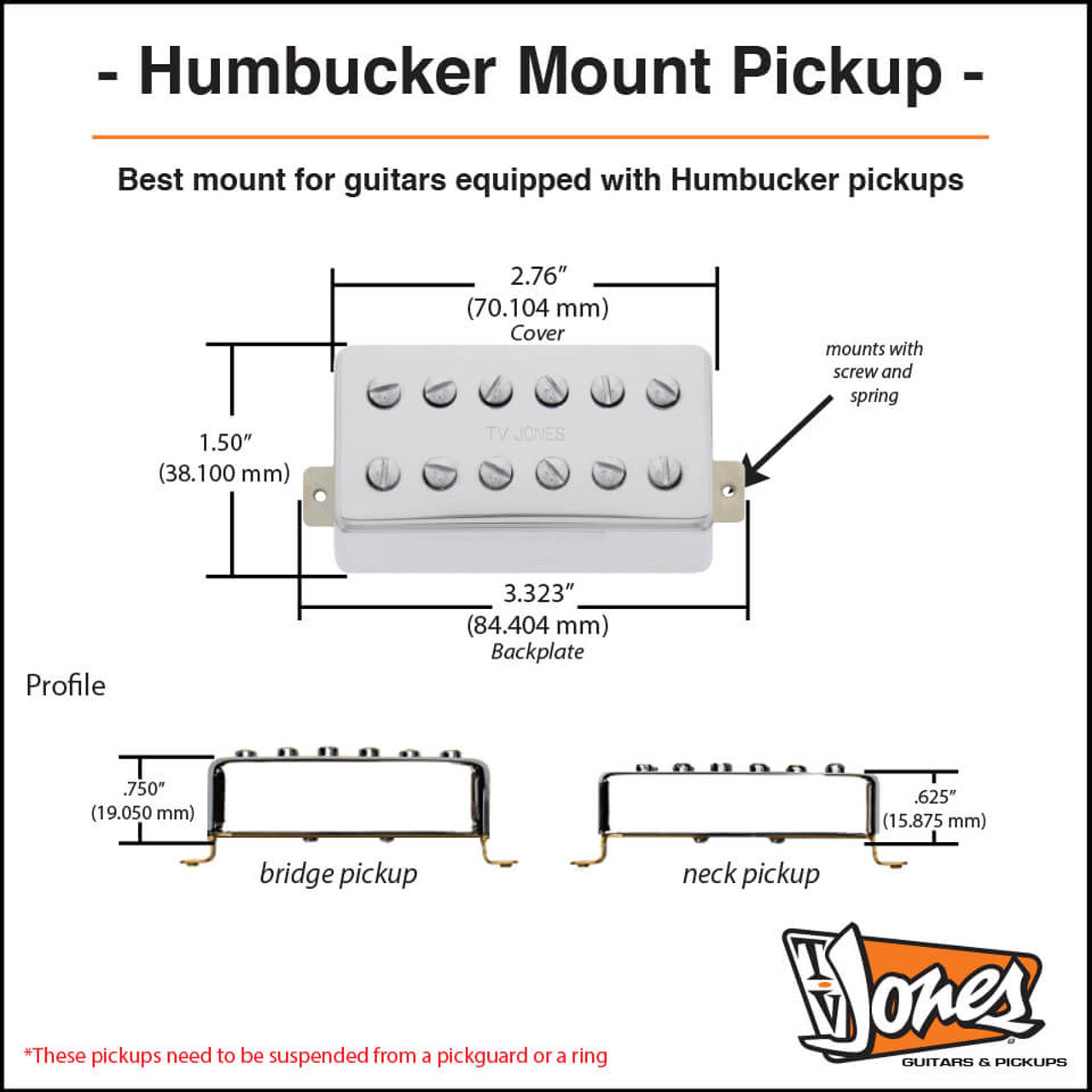

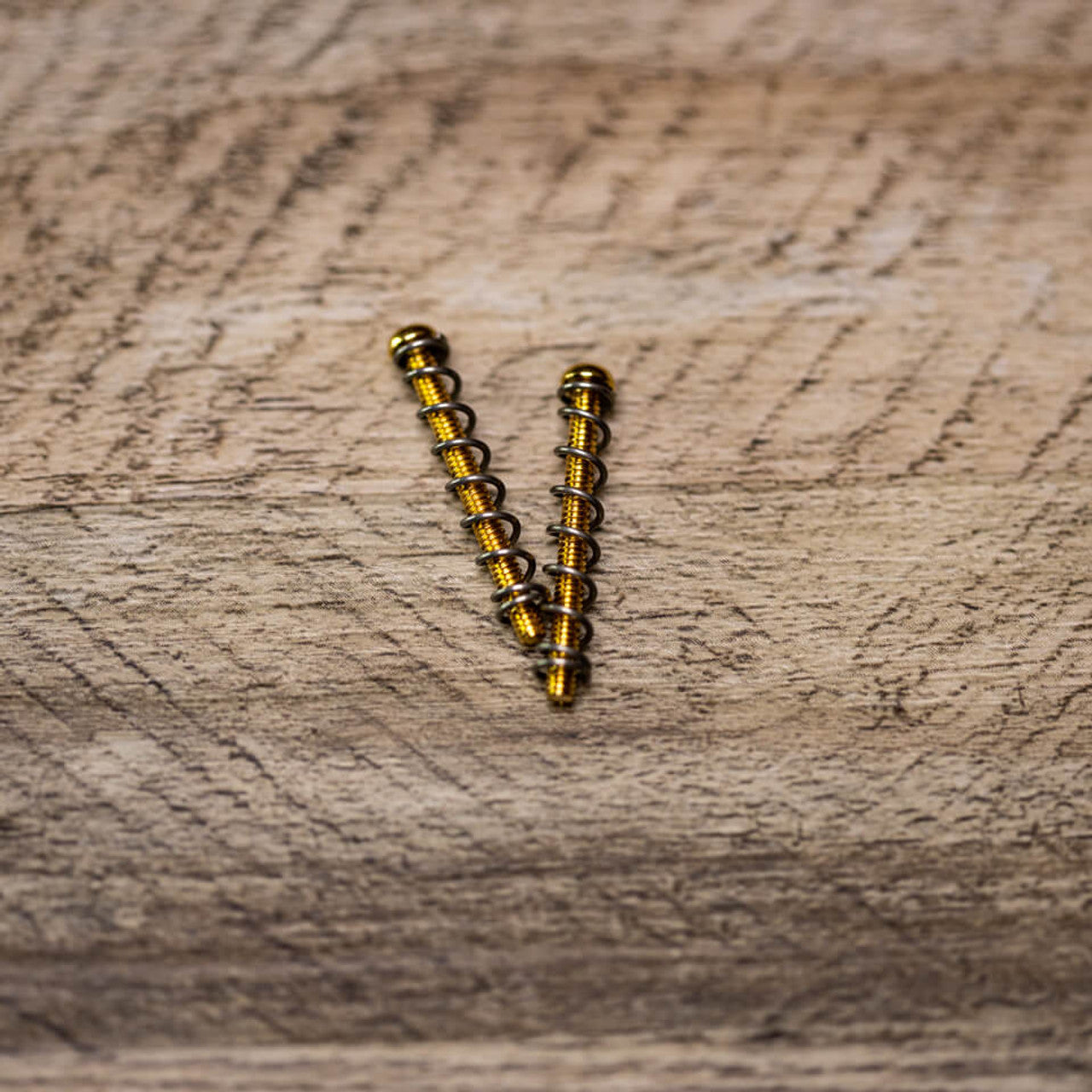

The Humbucker Mount is a direct drop-in replacement for any guitar with standard sized humbuckers. This pickup ships with mounting screws and springs for adjustment.

NOTE: Designed for use with your original humbucker ring. TV Jones rings do not fit humbucker size pickups.

Wiring Notes

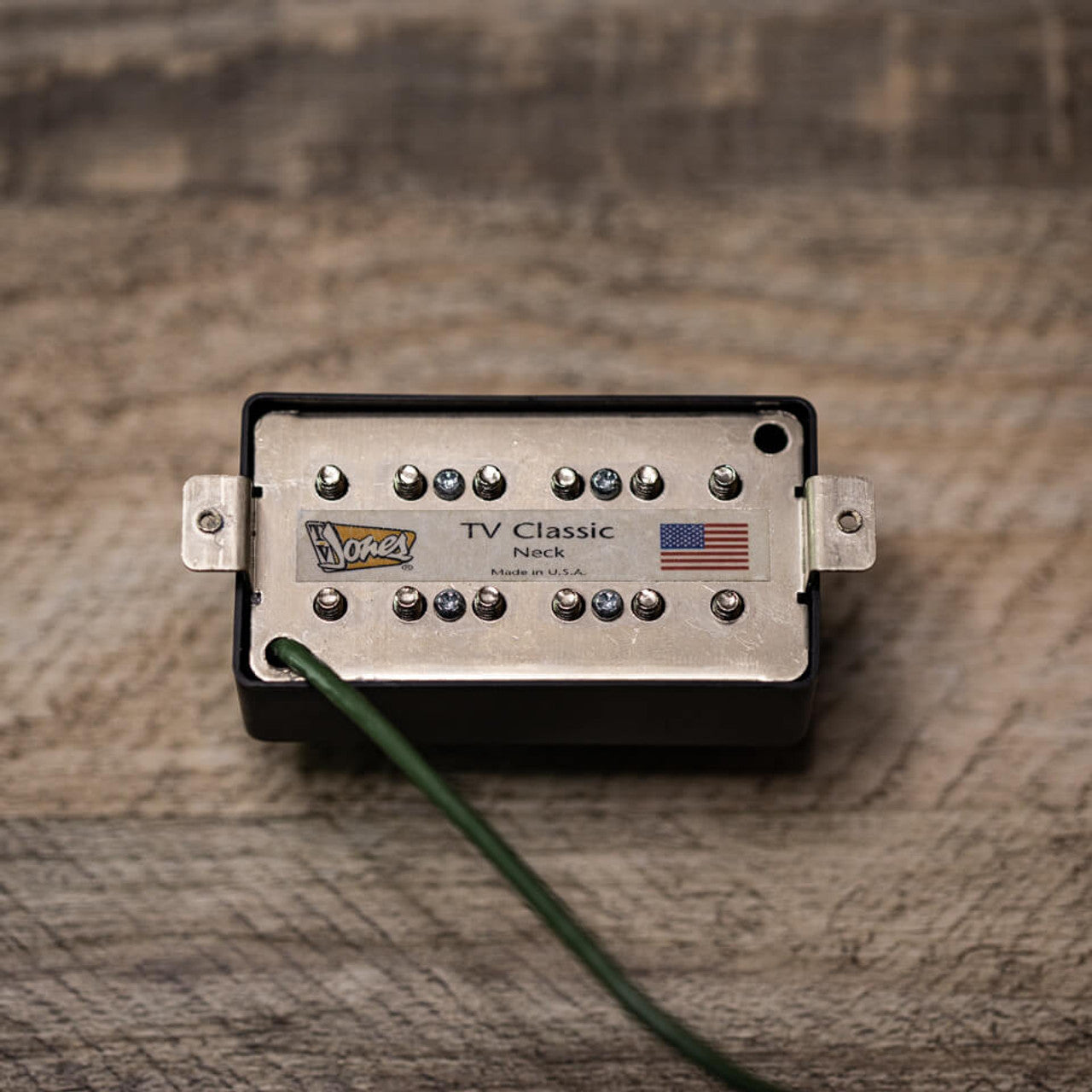

This pickup is shipped with 4-conductor wire but is ready for standard 2-conductor connection. The extra red and green wires come soldered together and taped off - to split coils, send these to ground.

Splitting coils is generally not recommended for this pickup due to low coil output but some say it works well to their taste. 4-Conductor wire is also convenient for custom switching i.e. pickups combined in series or parallel.

Features:

• Free shipping, delivery within 2 to 3 business days or less.
• We are an authorized TV Jones dealer.
• TV Jones's best-selling pickup
• Position: Neck
• DC resistance: 4.0k
• Inductance: 1.4H
• Type: Humbucker
• Active/Passive: Passive
• Magnet Material: Alnico
• Number of Conductors: 4 wire plus shield
• DC Resistance: 4.8K
• Connectivity: Soldered
• Number of Strings: 6
