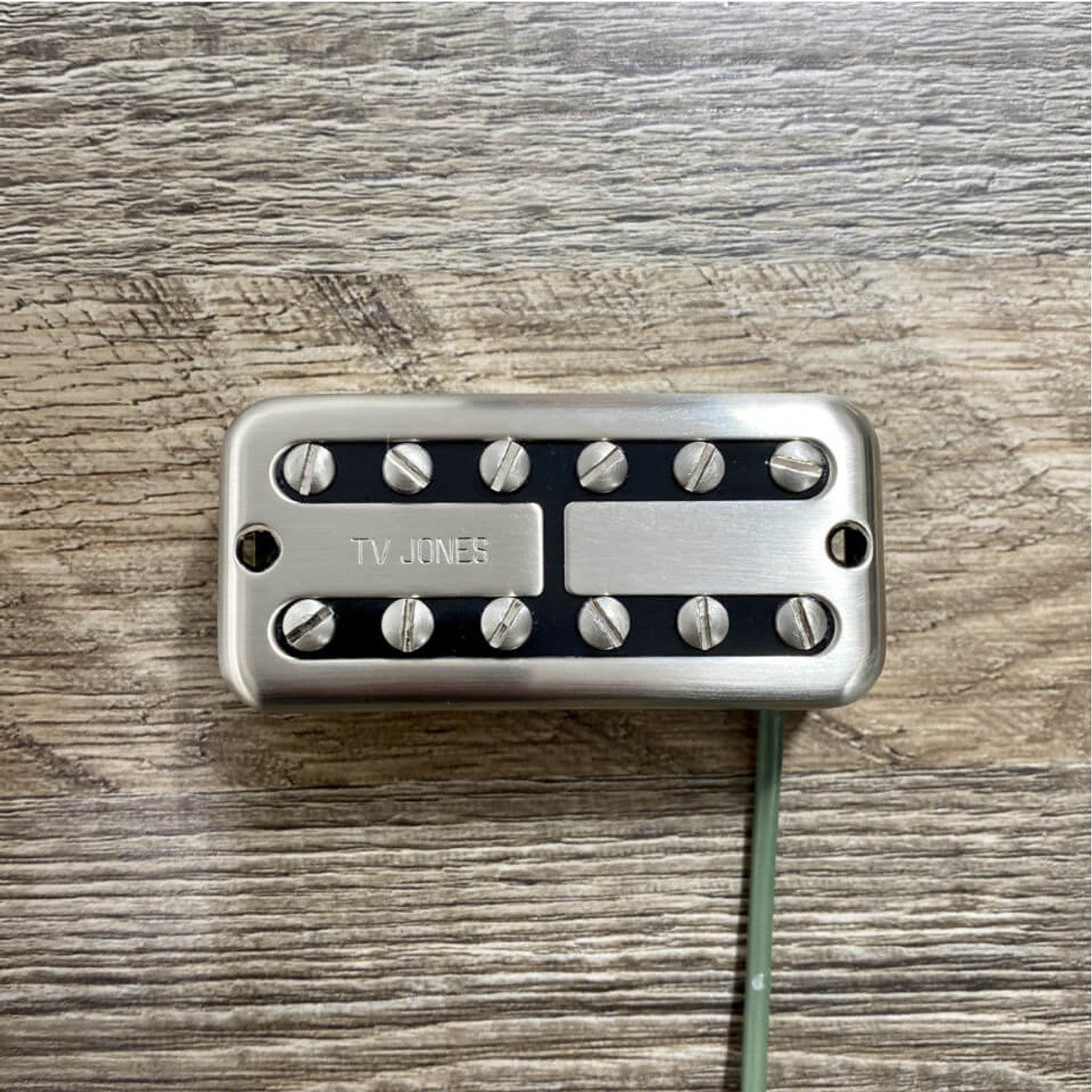

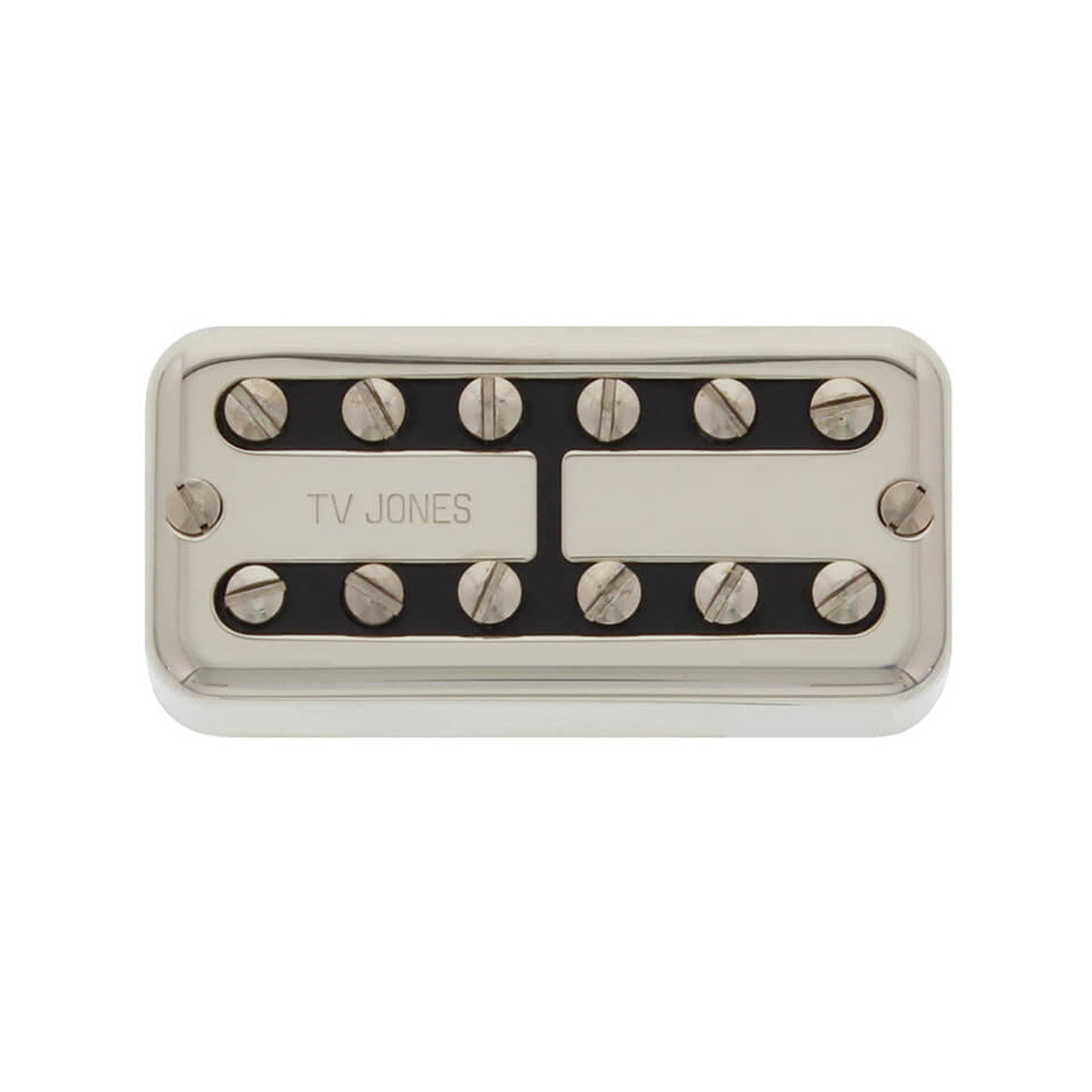

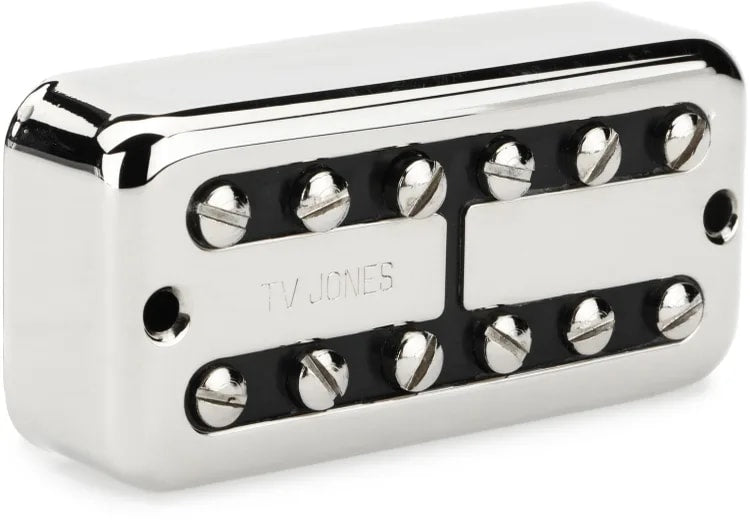

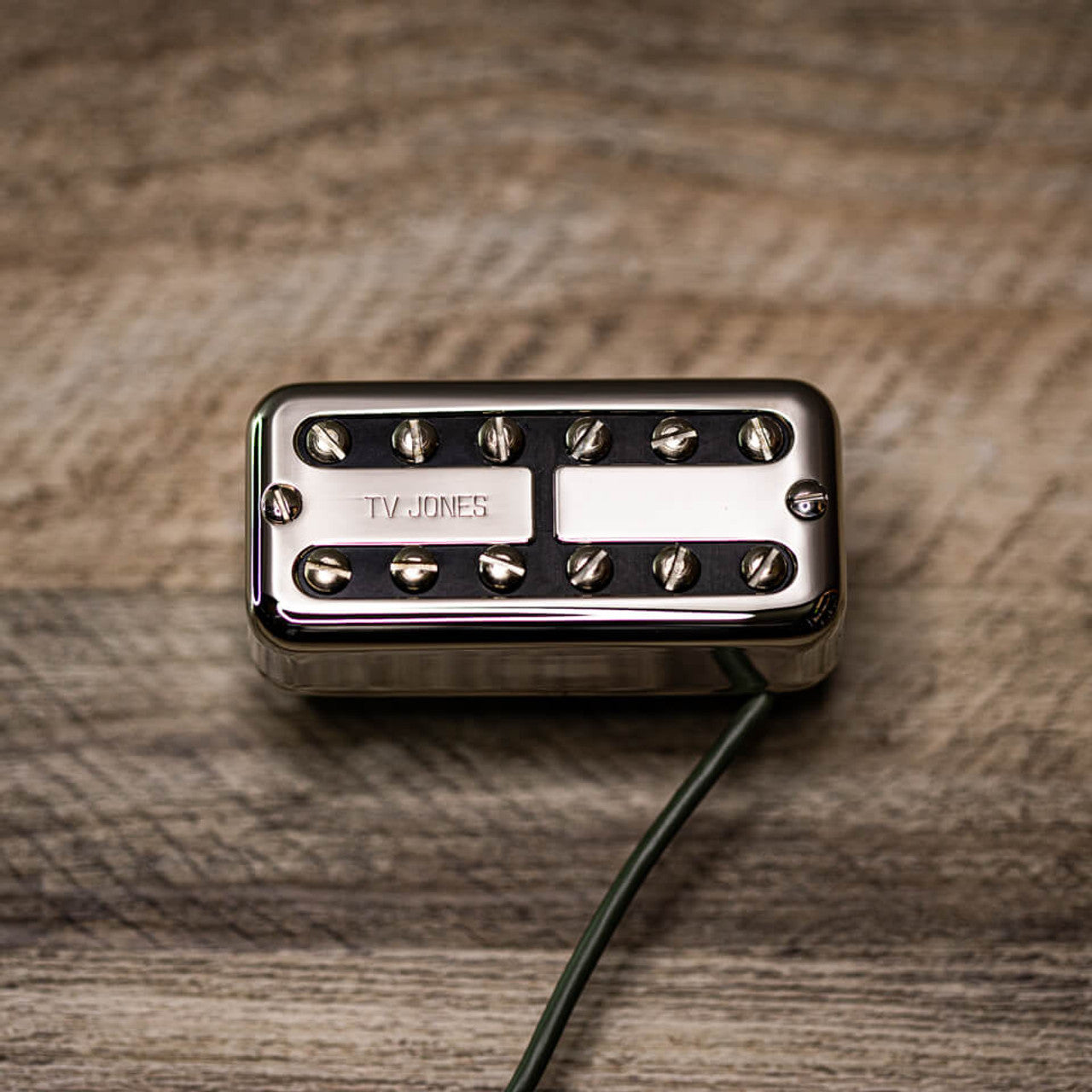

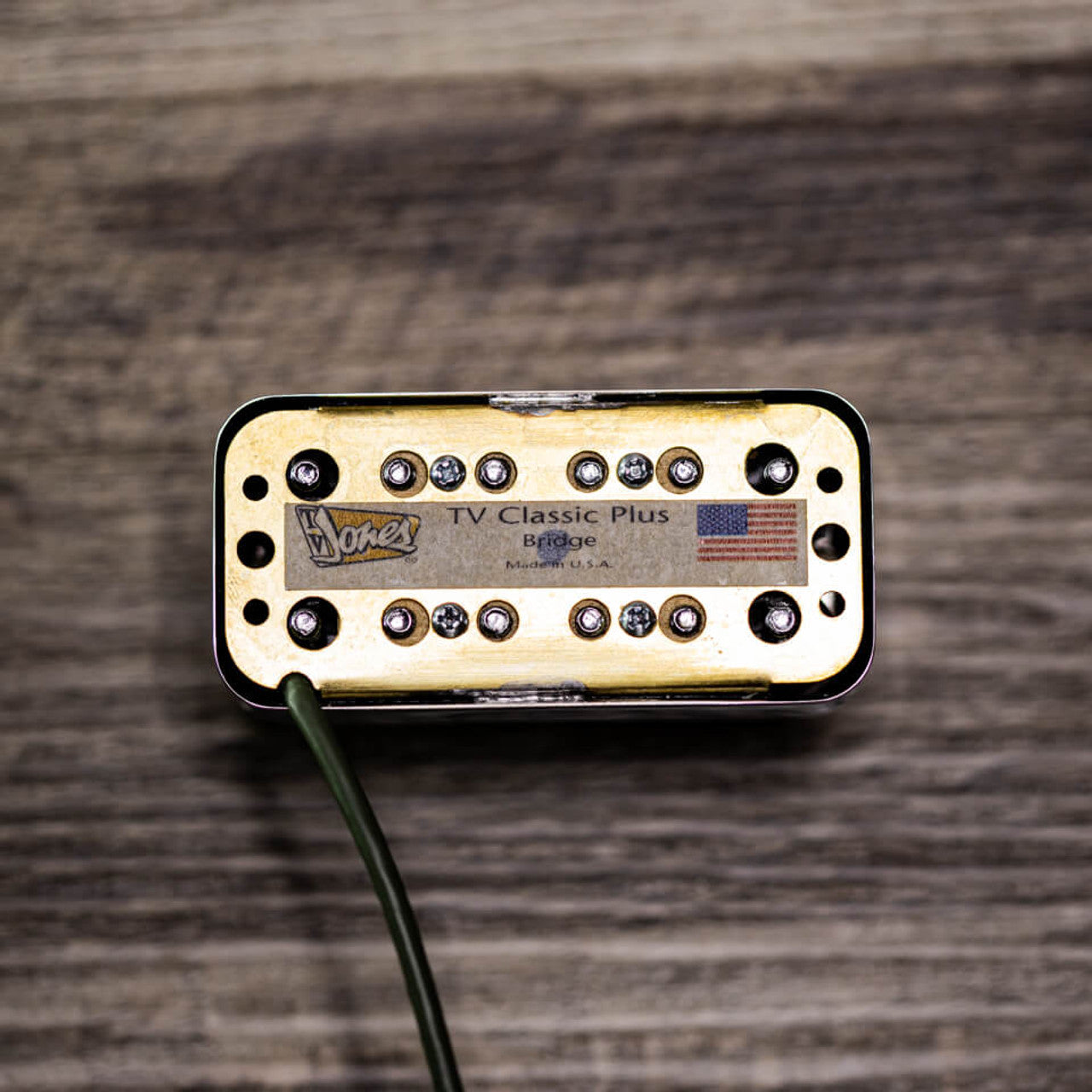

TV Jones TV Classic Plus Bridge Humbucker Pickup - Nickel - New

In brief: Humbucking Bridge Pickup with 7.8k DC Resistance and 2.83H Inductance - Nickel

This bigger, badder, older sibling to the TV Classic is a bridge position only pickup that packs a mighty punch. Using thinner gauge wire, it saturates quicker with punchy mids but keeps that "Classic" Filter'Tron vibe.

Tone/Characteristics
Like a TV Classic but with more attitude, the TV Classic Plus is wound with thinner gauge wire providing a slightly rounder top-end and a touch more output. Many players wish for a Filter'Tron that has "more" to it's sound...this pickup fills that need very well. Installing the TV Classic Plus with a Super'Tron paves the way for some serious Chet Atkins glory (check out his '59 Country Gentleman) but is also a wonderful combination that brings out some of the best sounds in our line (and secretly one of TV's favorite combinations).

Output/Power

DC Resistance is not entirely an indicator of true pickup output, although it can be helpful.

Bridge (only): DCR - 7.8k / Inductance - 2.83H

Installation:

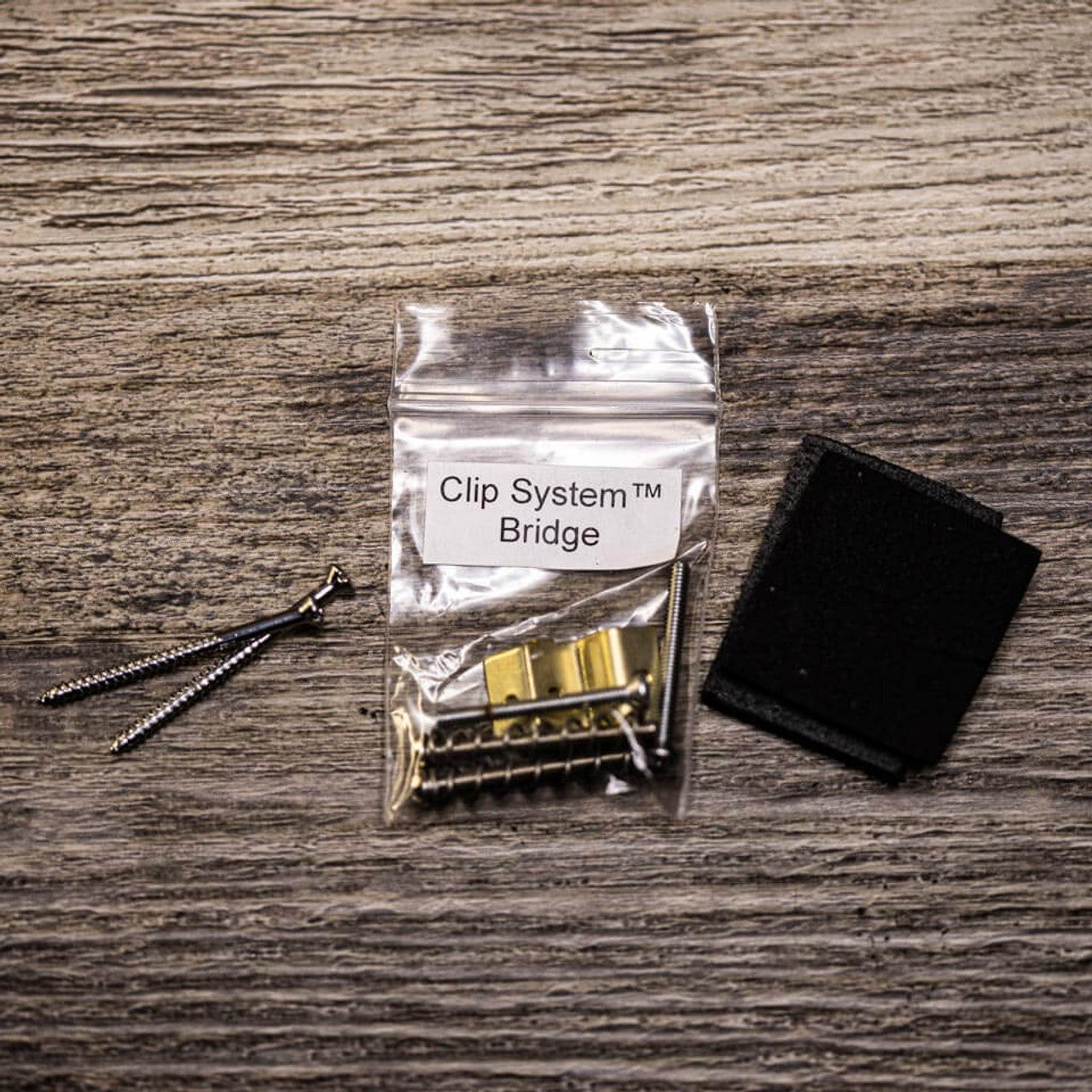

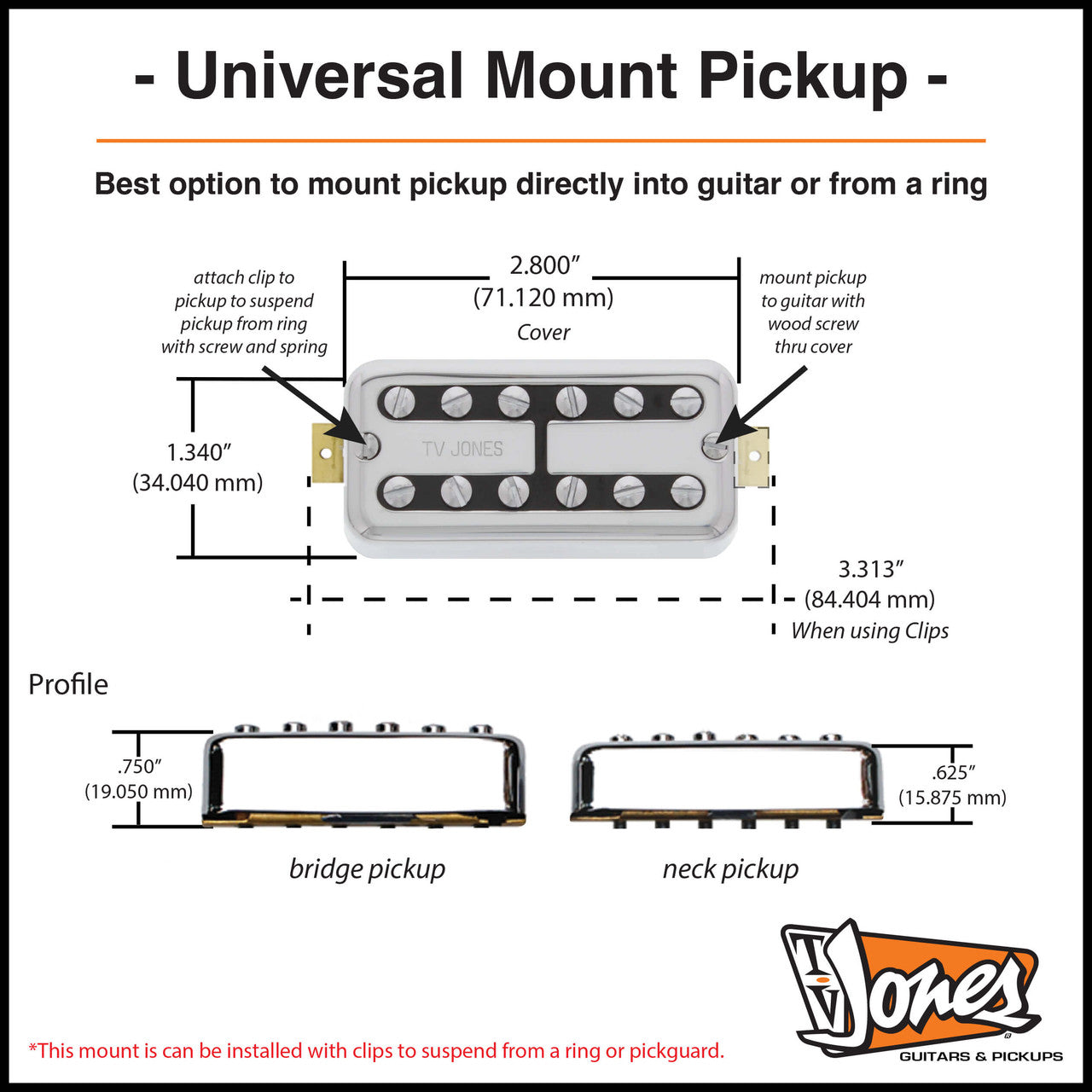

The Universal Mount is a direct drop-in replacement for guitars with standard sized Filter'Trons - with and without "ears" or "clips". This pickup comes standard with two pieces of compression rubber, 2 mounting (wood) screws, and 1 Universal Mount Clip Pack - which includes everything you will need to mount the pickups to a TV Jones ring or pickguard.

The Universal Mount can be installed two different ways:

• As a direct drop-in replacement for guitars with standard sized Filter'Trons – use wood screws and compression rubber
• As a replacement for a humbucker mount pickup – attach clips before installing pickup to ring or pickguard

NOTE: The Universal Mount requires one of the following TV Jones rings (unless suspending from a pickguard)

Wiring Notes
This pickup is shipped with 4-conductor wire but is ready for standard 2-conductor connection. The extra red and green wires come soldered together and taped off - to split coils, send these to ground.

Features:

• Free shipping, delivery within 2 to 3 business days or less.
• We are an authorized TV Jones dealer.
• Hotter and warmer than the TV Classic
• Great sustain and breakup
• Pairs well with other Filter'Tron-style neck pickups
• Works well for fuzz tones
• Overwound using thinner magnet wire
• Wide pole spacing for greater inductance
• Position: bridge only
• DC resistance: 7.8k
• Inductance: 2.83H
• Ships with 4-conductor wiring — ready for standard 2-conductor connections

Attributes

• Color: Nickel

Technical Specifications

• Position:Bridge
• Resistance:7.8k
• Inductance:2.83H
• Pole Spacing E to E:2.03"
• Pole to Pole Spacing:.406"
• Recommended Pot Value:500k

Benefits

• Provides punchy mid frequencies with a classic Filter'Tron sound
• Thinner gauge wire for quicker saturation and warmer output
• Universal mount design for easy installation on various guitar models
• Compatible with standard 2-conductor wiring for versatile setups
• Wide pole spacing for enhanced inductance and tonal clarity
