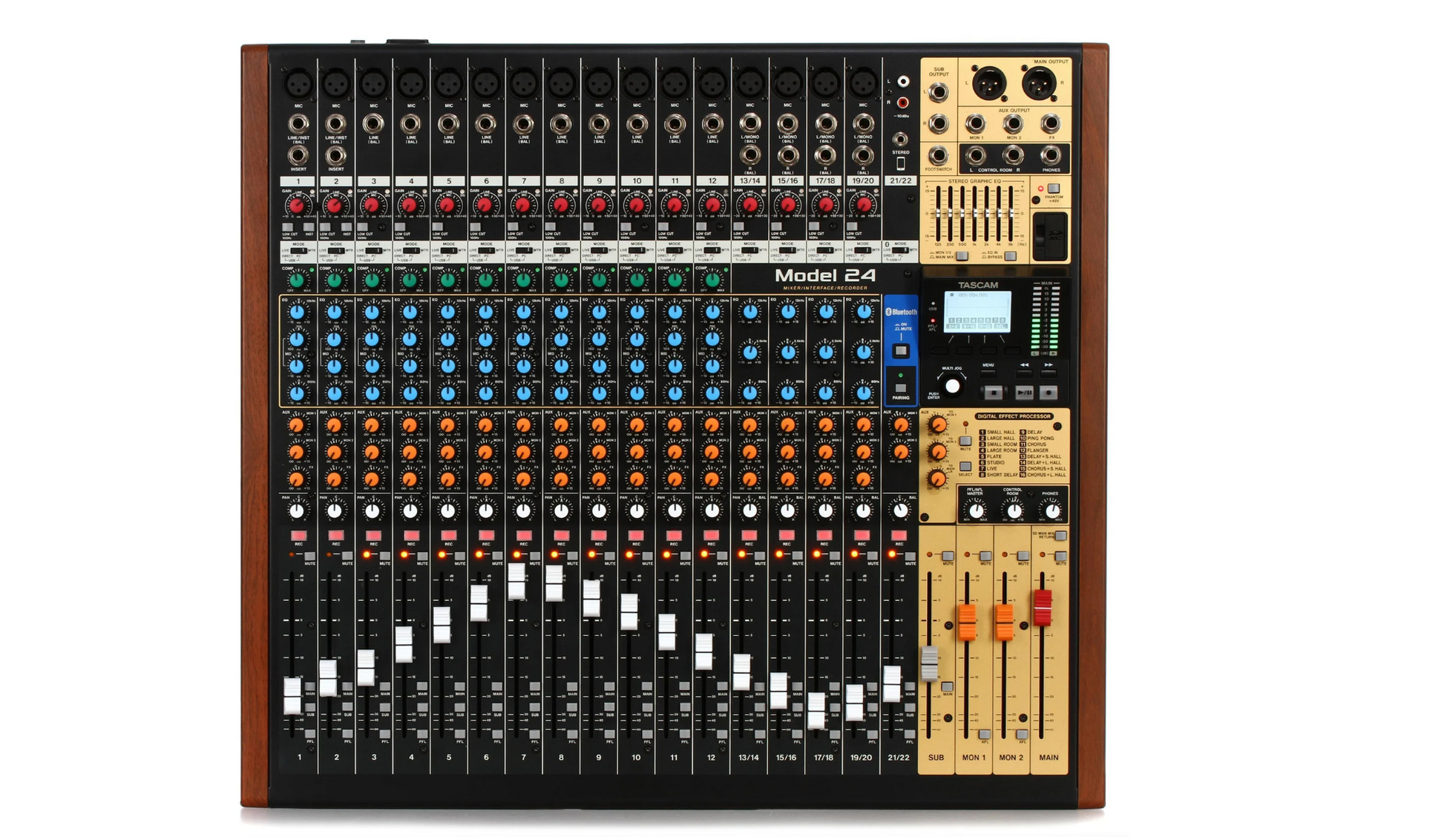

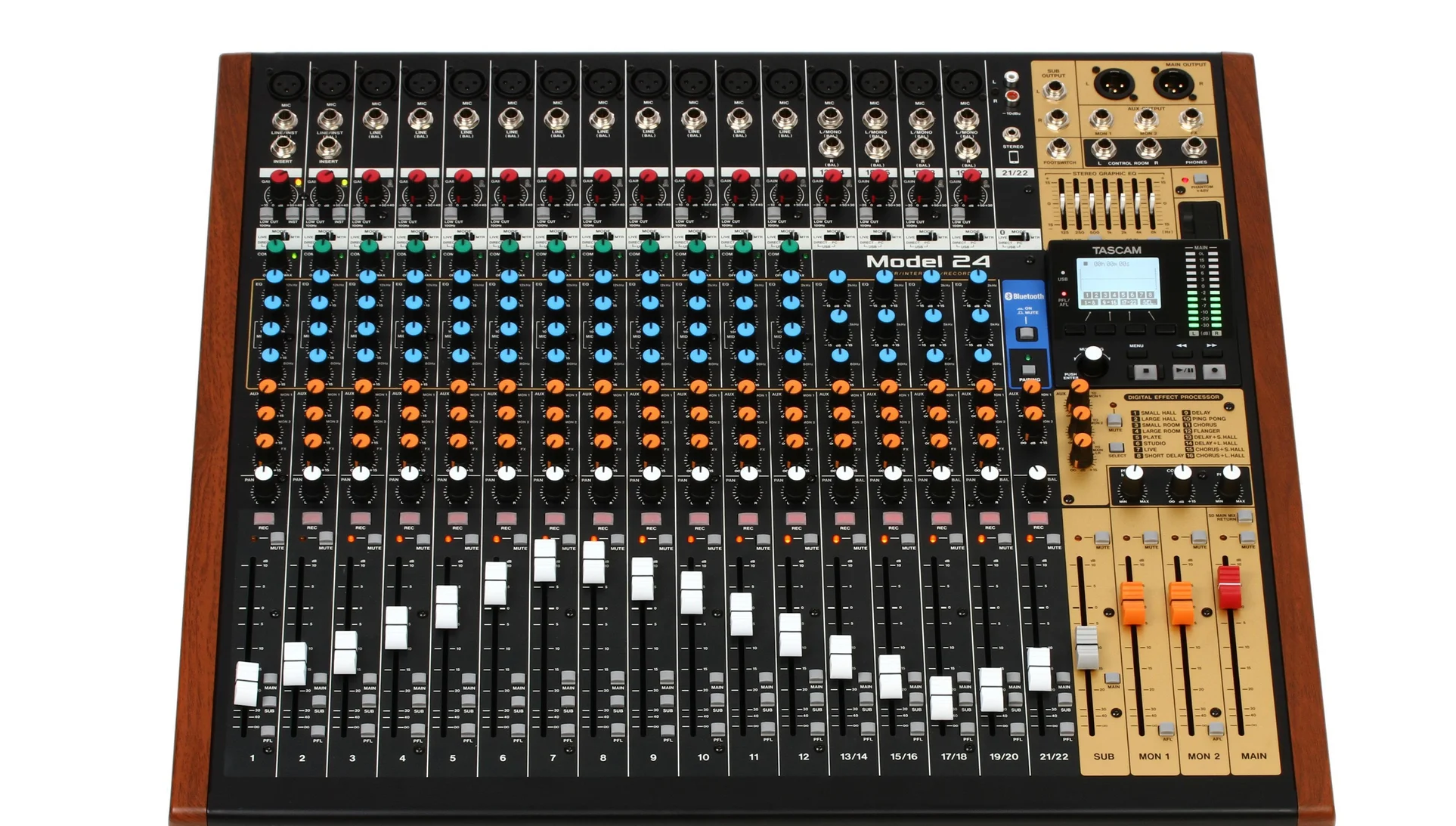

TASCAM Model 24 24-channel Analog Recording Console -NEW
In brief: 24-channel/22-input Analog Console with 24-channel Multitrack Recorder, 24-in/22-out USB Audio Interface, 21 Faders, 16 Mic Preamps, and Digital Effects
Whether you’re rehearsing, performing live, or producing in the studio, the TASCAM Model 24 delivers a powerful and intuitive all-in-one multitrack recording solution. Combining classic analog mixer workflow with modern digital recording and DAW integration, the Model 24 offers exceptional sound quality, hands-on control, and rock-solid reliability.
Designed with the feel of a traditional analog console, the Model 24 features 100mm long-throw faders for precise level control, along with familiar EQ and auxiliary sends that make shaping your mix fast and intuitive. Sixteen high-grade microphone preamps with +48V phantom power ensure clean, detailed capture of vocals and instruments, while onboard 3-band EQs and a 7-band graphic EQ provide powerful tone-shaping options for both individual channels and the main output.
Standalone recording is effortless with the Model 24’s built-in multitrack recorder. Capture up to 24 simultaneous tracks directly to an SD card at 24-bit/48kHz resolution, with support for punch-in and punch-out on up to eight tracks at once. Flexible routing and onboard effects make it easy to craft polished recordings without ever turning on a computer, delivering a modern take on the classic Portastudio experience.
When it’s time to integrate with your DAW, the Model 24 shines as a full-featured 24-in/22-out USB audio interface. High-quality preamps and onboard compression provide professional results for recording, while mixdown is equally flexible—work entirely in the box or route tracks back through the Model 24 for up to 22 channels of hands-on mixing and authentic analog character.
Despite its extensive feature set, the Model 24 remains lightweight, rugged, and highly portable. Built to TASCAM’s legendary standards of durability, it’s equally at home in the studio, on stage, or on the road. For musicians, engineers, and bands seeking an intuitive workflow with professional sound and modern flexibility, the TASCAM Model 24 is a powerful centerpiece for any recording setup.
Features:
- Free shipping, delivery within 2 to 3 business days or less.
- We are an authorized Tascam dealer.
- Great-sounding, easy-to-use 24-track multitrack recording solution
- Boasts a classic analog mixer-style design that's both intuitive and immediate
- 100mm faders provide precise control
- Familiar EQ and Aux controls for tweaking your tracks
- Generous complement of I/O including 16 high-grade mic preamps
- Internal recording to SD card at 24-bit/48kHz resolution
- Flexible routing and onboard effects
- Built-in 24-in/22-out audio interface for easy DAW integration
- Lightweight yet rugged design
- Type: Analog Mixer with USB Interface/Recorder
- Channels: 22 input channels, 24-track
- Computer Connectivity: USB (24 x 22)
- A/D Resolution: 24-bit/48kHz
- Faders: 21 x 100mm Long Throw
- Inputs - Mic Preamps: 16 x XLR
- Phantom Power: 16 channels
- Inputs - Line: 12 x 1/4" (mono), 8 x 1/4" (4 stereo), 2 x 1/4" (line/Hi-Z), 1 x 1/8" (stereo), 1 x Dual RCA Stereo
- Outputs - Main: 2 x XLR (main), 2 x 1/4" (control room)
- Outputs - Other: 2 x 1/4" (L/R subgroup)
- Aux Sends: 2 x Monitor, 1 x FX
- Send/Return I/O: 2 x 1/4" (monitor send), 1 x 1/4" (FX send)
- Busses/Groups: 1 x Subgroup
- Inserts: 2 x 1/4" (channel)
- Headphones: 1 x 1/4"
- USB: 1 x Type B
- Bluetooth: v4.0
- Other I/O: 1 x 1/4" (footswitch)
- EQ Bands: 3-band EQ with Sweepable Mid Frequency, 100Hz Low-cut, 7-band Graphic EQ
- Signal Processing: 12 x Channel Compressor
- Effects: Reverbs, Delays, Chorus, Flanger
- Storage: SD Card Slot, SDHC (4GB-32GB), SDXC (64GB-512GB)
- OS Requirements - Mac: Dual Core 2GHz Processor or higher, OS X 10.11 or later
- OS Requirements - PC: Dual Core 2GHz Processor or higher, Windows 7 SP1, 8.1, 10 1803 update or later
- Power Source: Standard IEC AC cable
Benefits
- 16 high-grade mic preamps with phantom power for clean vocal and instrument capture
- Integrated 24-track multitrack recorder allows standalone recording without a computer
- 24-in/22-out USB audio interface facilitates easy DAW integration and multichannel recording
- 100mm long-throw faders provide precise and tactile level control
- Built-in effects and flexible routing enable advanced mix shaping without additional equipment
- Lightweight and rugged design supports portability and durability for live and studio use
- Multiple EQ options including 3-band channel EQ and 7-band graphic EQ for tonal flexibility
- SD card recording supports high-resolution 24-bit/48kHz audio capture
- Various input and output options accommodate different instruments and devices
- Onboard compressors enhance dynamic control during recording and mixing
