3-Band Boost/Cut Bass Preamp Push Pull Aguilar OBP-3TKPP

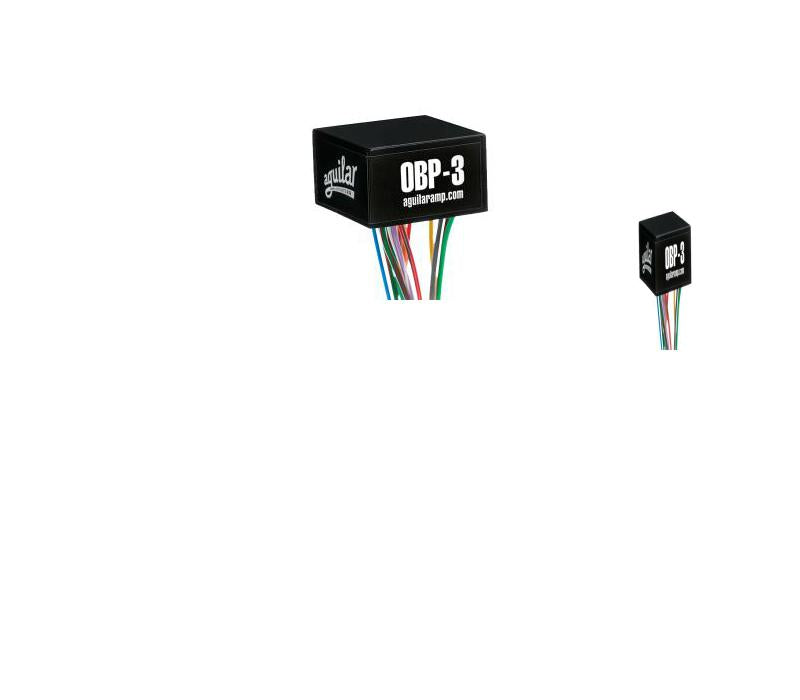

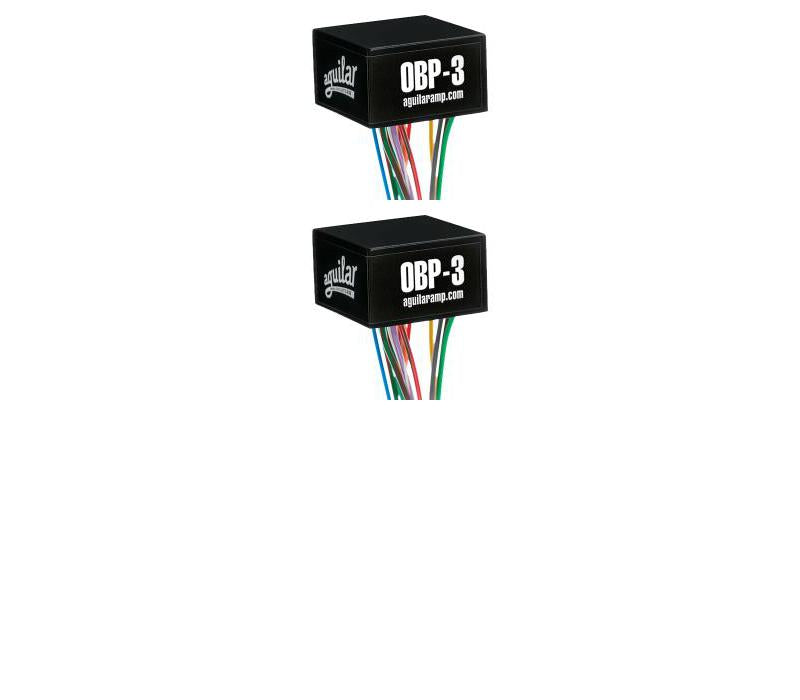

Aguilar OBP-3TKPP 3-Band Boost/Cut On Board Bass Preamp with Push Pull-NEW

In brief: 3-band Boost/Cut Onboard Preamp for Active Basses with Separate Treble, Mid, and Bass Pots, and Push/Pull Pot for Midrange Frequency Selection

The OBP-3 TK/PP is a three-band boost and cut bass, mid, and treble preamp, that has high headroom, low distortion, and the ability to reproduce the full dynamic range of your instrument. The OBP-3 has multiple wiring options, and can be wired with either a push/pull pot OR mini-toggle for midrange frequency selection. OBP-3 TK/PP kit includes separate Treble, Mid, and Bass pots. Mid pot is push/pull for Midrange frequency selection. The OBP-3 is Aguilar’s most flexible onboard preamp design, providing +/-18dB of cut and boost at 40Hz, +/- 16dB of cut and boost at either 400Hz or 800Hz and +/- 16dB of treble cut and boost at 6.5 kHz.

Get the “Aguilar Sound” onboard your bass in an easy to install package.

Features:

• Free shipping, delivery within 2 to 3 business days or less.
• Runs at either 9V or 18V
• 18dB boost/cut preamp at 40Hz, 16dB boost/cut at either 400Hz or 800Hz, and 16dB boost/cut at 6.5kHz
• Includes Treble, Mid, and Bass pots, Mid pot is push/pull for Midrange frequency selection
• OBP-3TK/PP: Separate Treble, Mid, and Bass pots. Mid pot is push/pull for Mid freq selection
• Bass control: plus/minus 18 dB @ 40 Hz
• Mid control: plus/minus 16 dB @ 400Hz or 800 Hz. User selectable frequency center
• Treble control: plus/minus 16 dB @ 6.5 KHz
• Input impedance: 1 meg ohm
• Output impedance: 100 ohm 9 or 18 volts operation
• Distortion: .019 into 10k ohm load
• Noise: -95 dBm unweighted
• Battery life: 324 hours
• Type: 3-band Preamp, Boost/Cut
• Instrument: Bass
• Active/Passive: Active (requires 9V battery)
• Features: Separate Treble, Mid, and Bass pots, Push/Pull Mid frequency

Benefits

• Flexible tonal control with separate treble
• mid
• and bass adjustments.
• Push/pull mid pot allows selection between two midrange frequency centers.
• High headroom and low distortion maintain clean bass sound.
• Compatible with 9V or 18V power supplies.
• Wide boost/cut ranges enable precise sound shaping.
• Easy integration with active bass guitars.
• Separate controls simplify sound customization on the instrument.
• Durable design suitable for gigging and studio use.
• Low noise operation ensures clear audio signal.
• Multiple wiring options for versatile installations.
