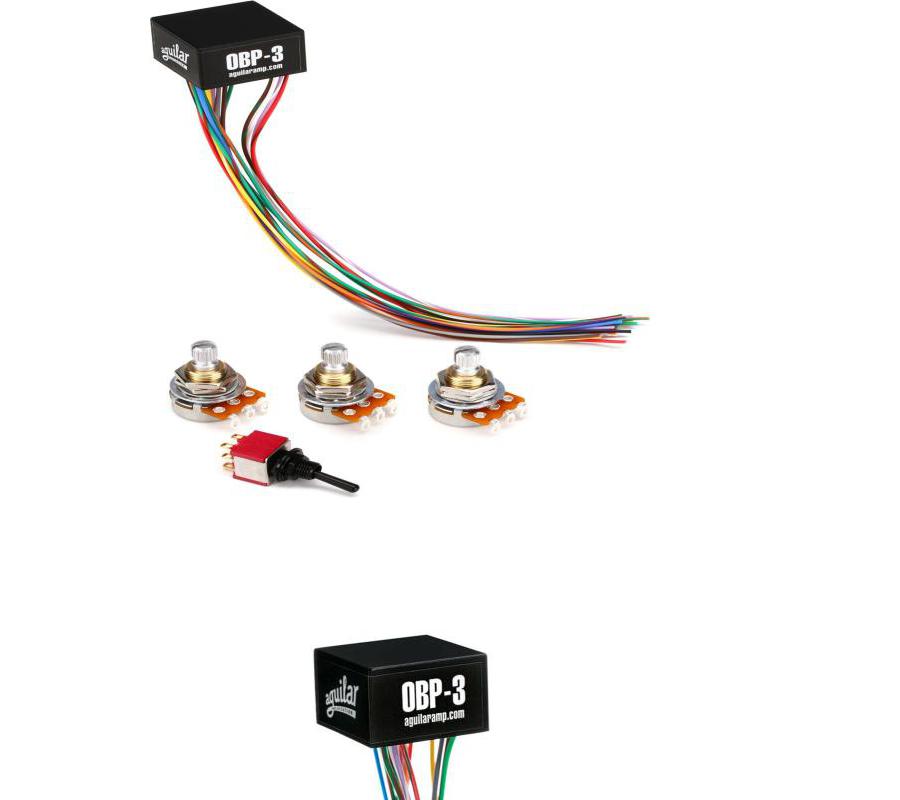

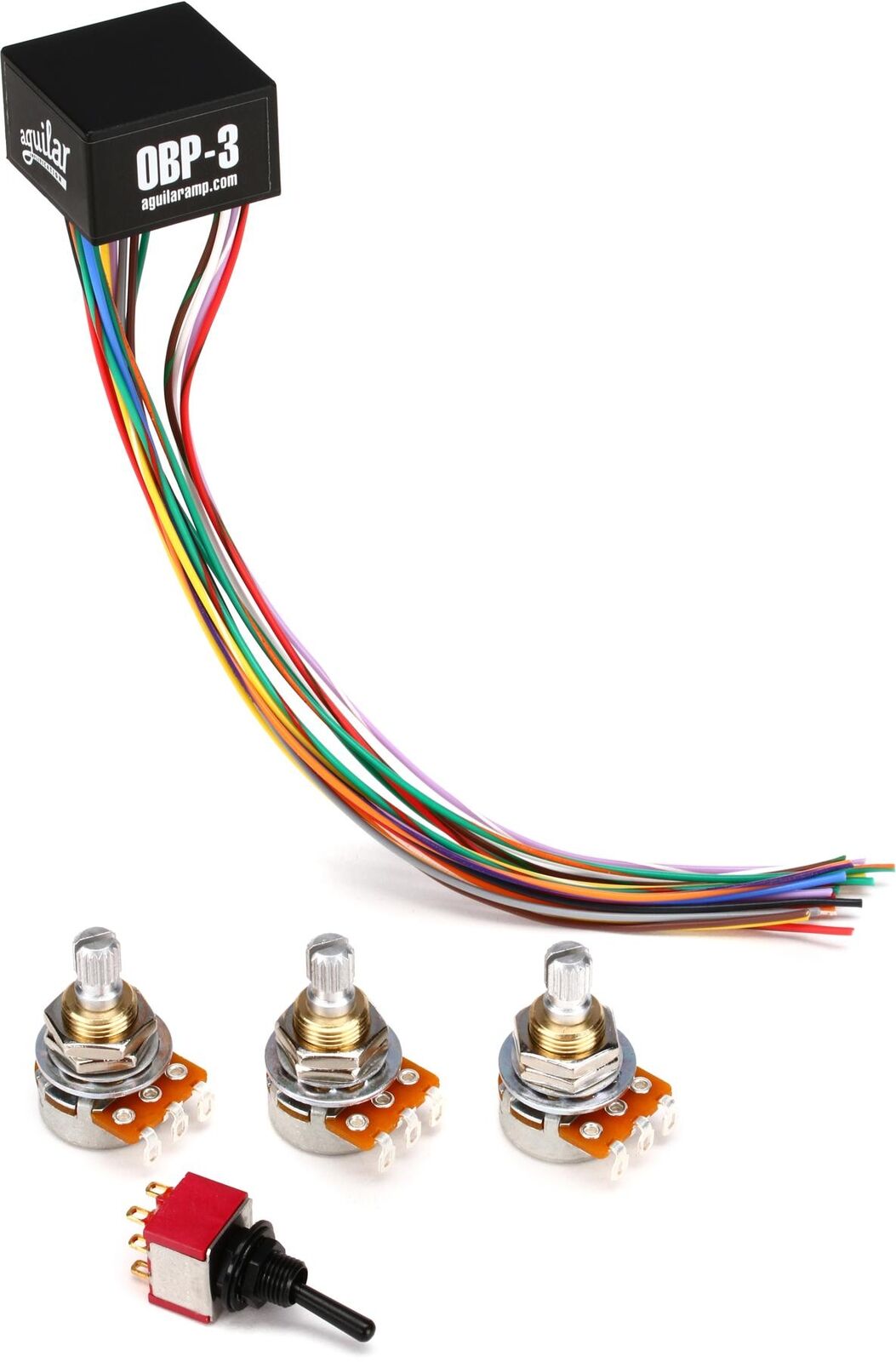

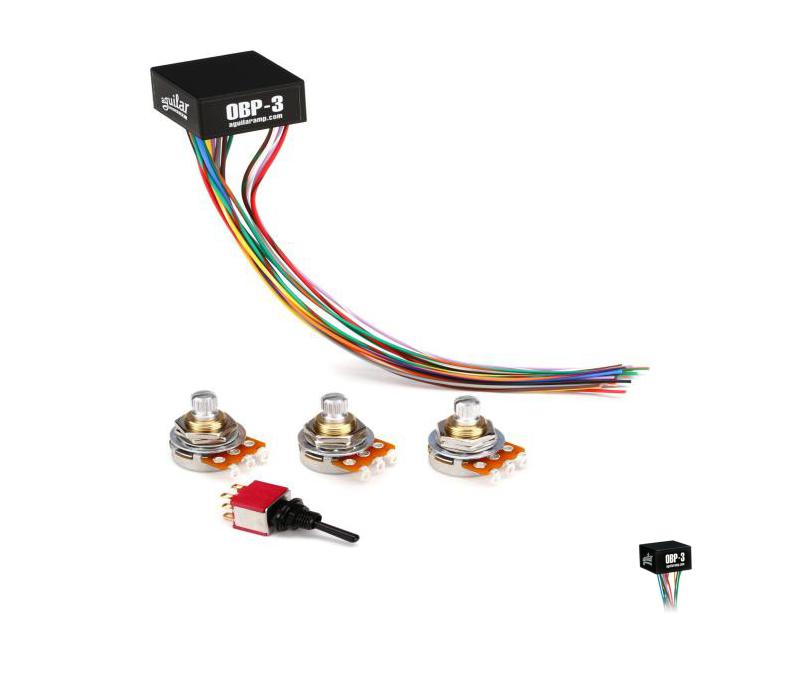

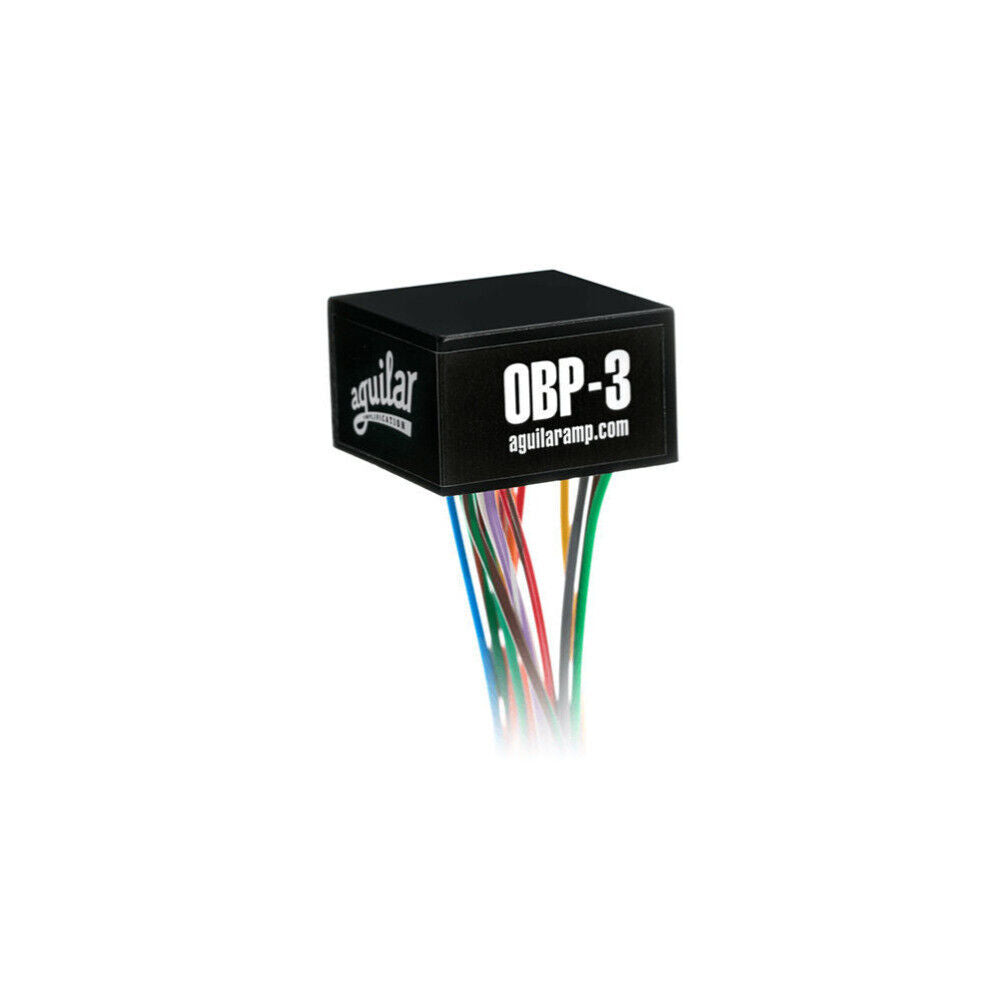

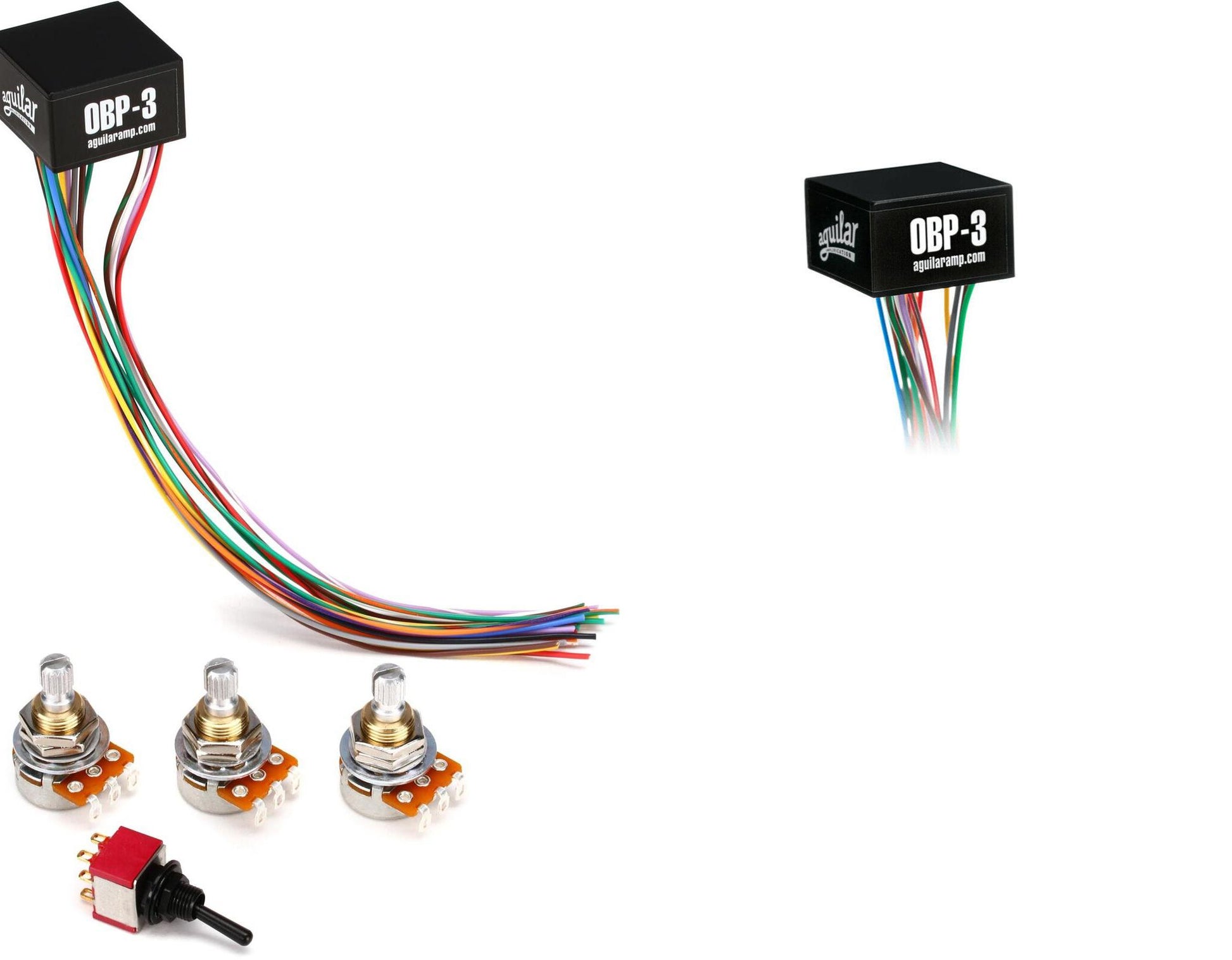

Aguilar OBP-3TK 3-Band Boost/Cut On Board Bass Preamp with Toggle - New

The Aguilar OBP-3TK is a three-band boost and cut bass, mid, and treble preamp, that has high headroom, low distortion, and the ability to reproduce the full dynamic range of an instrument. The OBP-3 has multiple wiring options and can be wired with either a push/pull pot or a mini-toggle for midrange frequency selection. This is the most flexible onboard preamp that is considered as Swiss Army Knife of onboard preamps providing +/-18dB of cut and boost at 40Hz, +/- 16dB of cut and boost at either 400Hz or 800Hz and +/- 16dB of treble cut and boost at 6.5 kHz. Includes separate Treble, Mid, and Bass pots, and black mini-toggle switch for Midrange frequency selection.

Features:

• Free shipping, delivery within 2 to 3 business days or less.
• It has the most flexible onboard preamp design
• Flexibility in their preamp both sonically and wiring
• Ability to reproduce the full dynamic range of an instrument
• Providing +/-18dB of cut and boost at 40Hz
• Offers +/- 16dB of cut and boost at either 400Hz or 800Hz
• With +/- 16dB of treble cut and boost at 6.5 kHz
• Considered as Swiss Army Knife of onboard preamps
• Can be wired with push/pull pot or mini-toggle
• It has low noise discrete FET input stage
• Center detent 50 K linear pots, with a dual concentric pot
• Treble, Mid, and Bass pots, and black mini-toggle switch

Aguilar OBP-3TK 3-Band Onboard Bass Preamp

Dimensions W x L x H: 0.98 x 0.98 x 0.59 inch

Bass control: plus/minus 18 dB at 40 Hz

Mid control: plus/minus 16 dB at400Hz or 800 Hz

Treble control: plus/minus 16 dB at 6.5 kHz

Input impedance: 1 meg ohm

Output impedance: 100 ohm 9 or 18 v operation

Distortion: .019 into 10k ohm load

Noise: -95 dBm unweighted

Battery life: 324 hours

Wire lead length: 6.50 inch

Includes Feature: Low noise discrete FET input stage, center detent 50 K linear pots, with a dual concentric pot, separate Treble, Mid, and Bass pots, and black mini-toggle switch for Midrange frequency selection

Benefits

• Provides +/-18dB boost/cut at 40Hz for bass frequency control
• Offers +/-16dB boost/cut at selectable mid frequencies of 400Hz or 800Hz
• Includes +/-16dB treble cut and boost at 6.5kHz for brightening or mellowing tone
• Low noise discrete FET input stage minimizes unwanted interference
• Multiple wiring options with push/pull pot or mini-toggle for flexible installation
• High headroom and low distortion preserve instrument’s dynamic range
• Separate treble
• mid
• and bass pots allow precise tonal adjustments
• Black mini-toggle switch enables easy midrange frequency selection
• Compact dimensions fit inside most bass guitar cavities
• Compatible with 9V or 18V power operation for extended battery life
