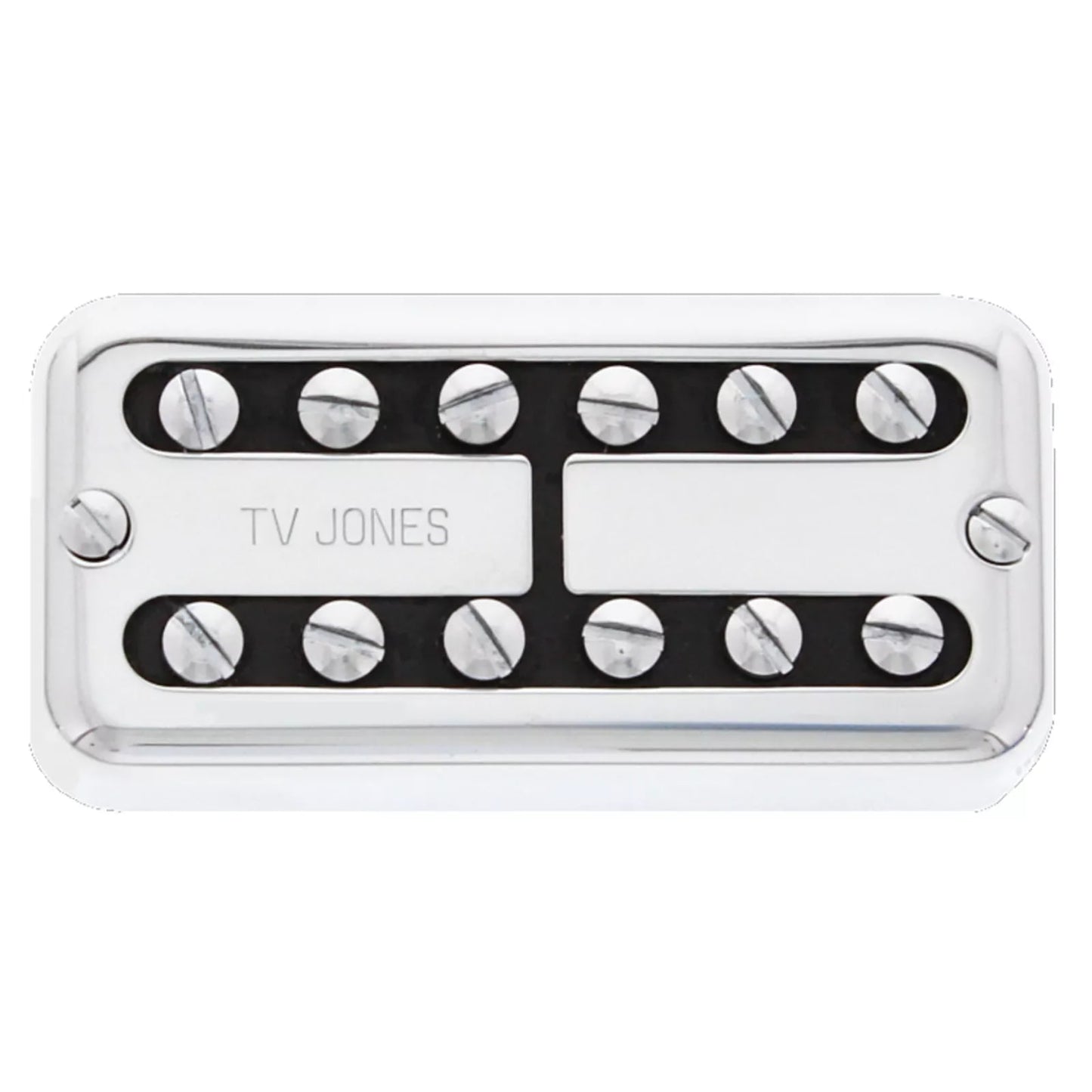

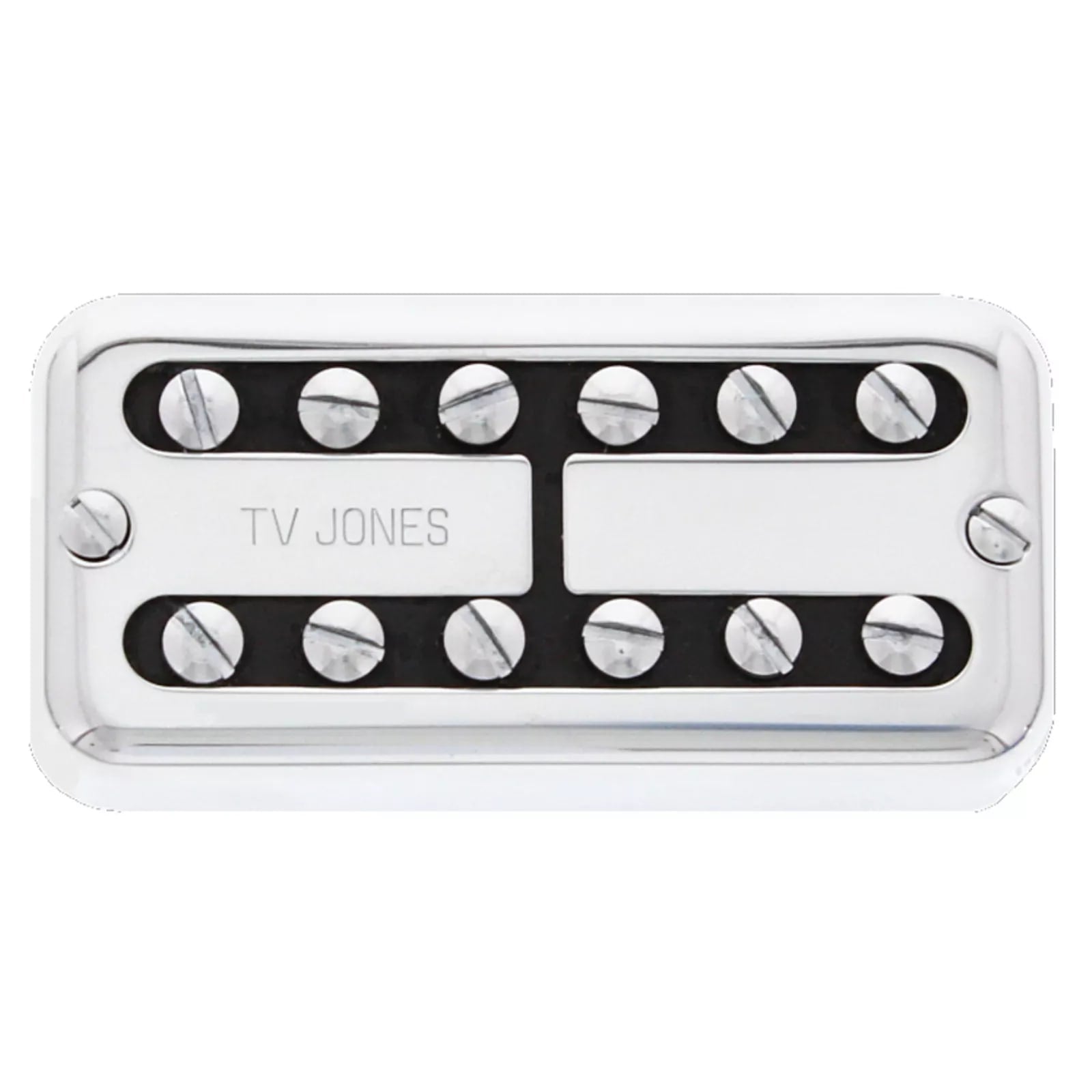

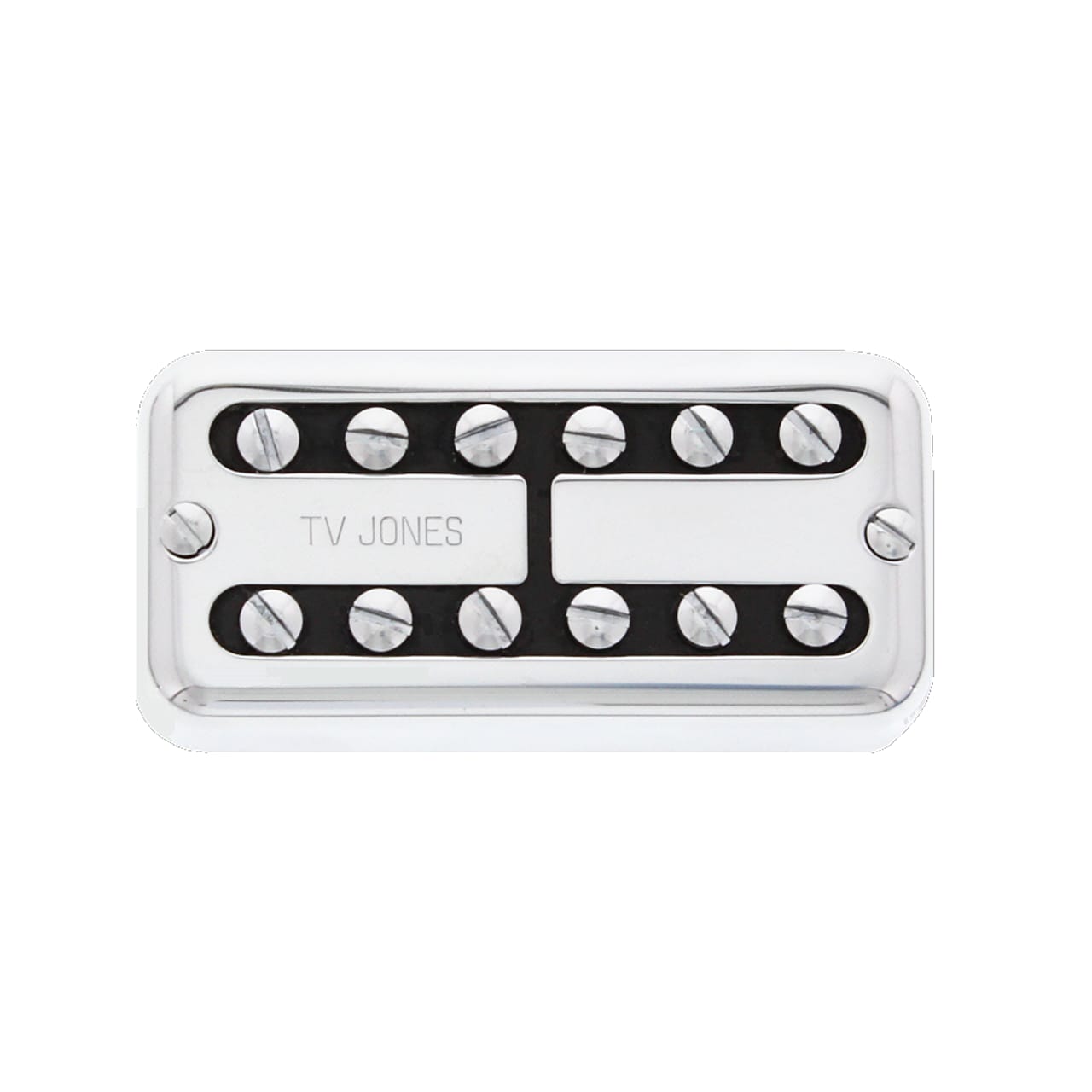

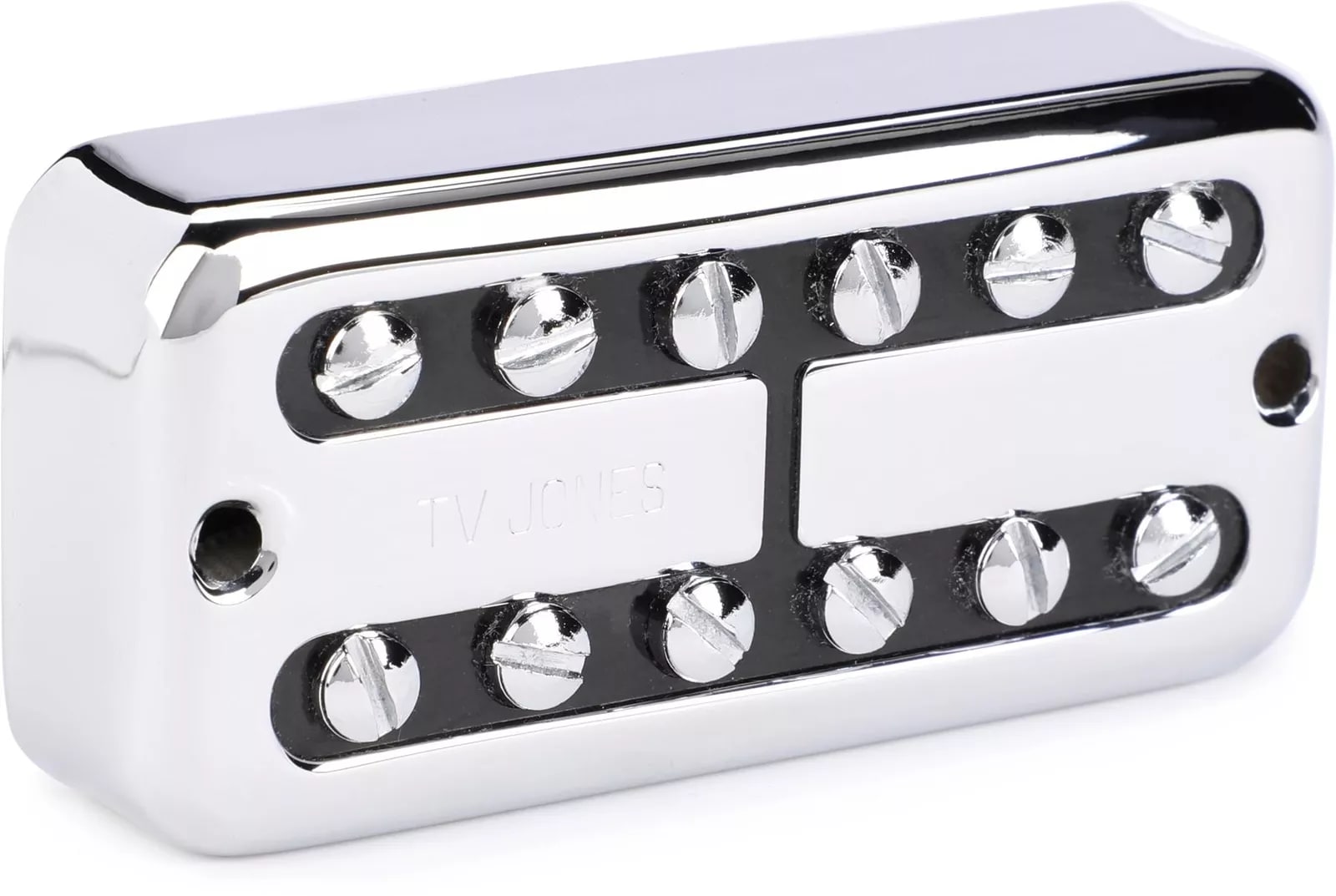

TV Jones Power'Tron Neck Humbucker Pickup - Chrome - New

TV Jones Power'Tron Neck Humbucker Pickup - Chrome - New

Regular price $152.99 USD
Regular price $191.24 USD Sale price $152.99 USD
Sale Sold out
  • Order now before it's gone!
  • Free Hertelpro Support
  • Super Free Fast Shipping

"This is the solution you've been looking for—try it today!"

❤️ Description

TV Jones Power'Tron Neck Humbucker Pickup - Chrome - New

In brief: Humbucking Neck Pickup with 5.0k DC Resistance and 2.24H Inductance - Chrome


The Power'Tron was born out of our desire to create a pickup that has the character of a PAF-style humbucker yet retains the essence of a Filter'Tron. It sounds a little bit darker and somewhat gnarlier, with more windings - as much as a PAF humbucker - for hotter output.


Tone/Characteristics
Mixing the vintage tone of a golden-age PAF with the rockabilly twang of a late-'50s Filter'Tron. Full body and a clear top end that is naturally dynamic. Digging in reveals a chunky low-end breakup paired with a barky top-end grit that sounds amazing through a tube amp. This is a great choice if you like the overall Filter'Tron sound but want more guts and glory than usually provided by lower output pickups.


Output/Power

DC Resistance is not entirely an indicator of true pickup output, although it can be helpful.

Bridge: DCR - 7.8k / Inductance - 4.75H

Neck: DCR - 5.0k / Inductance - 2.24H


Installation:

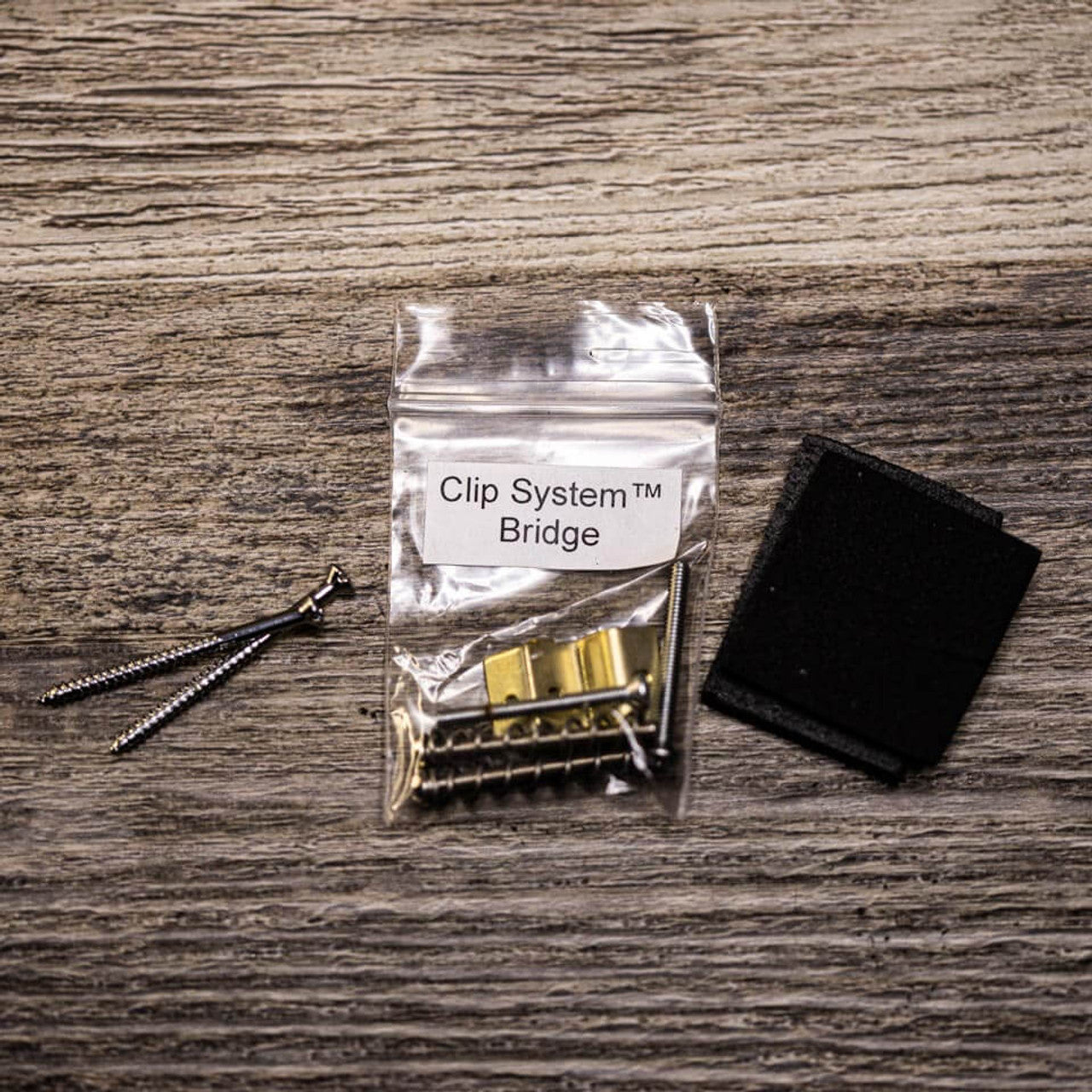

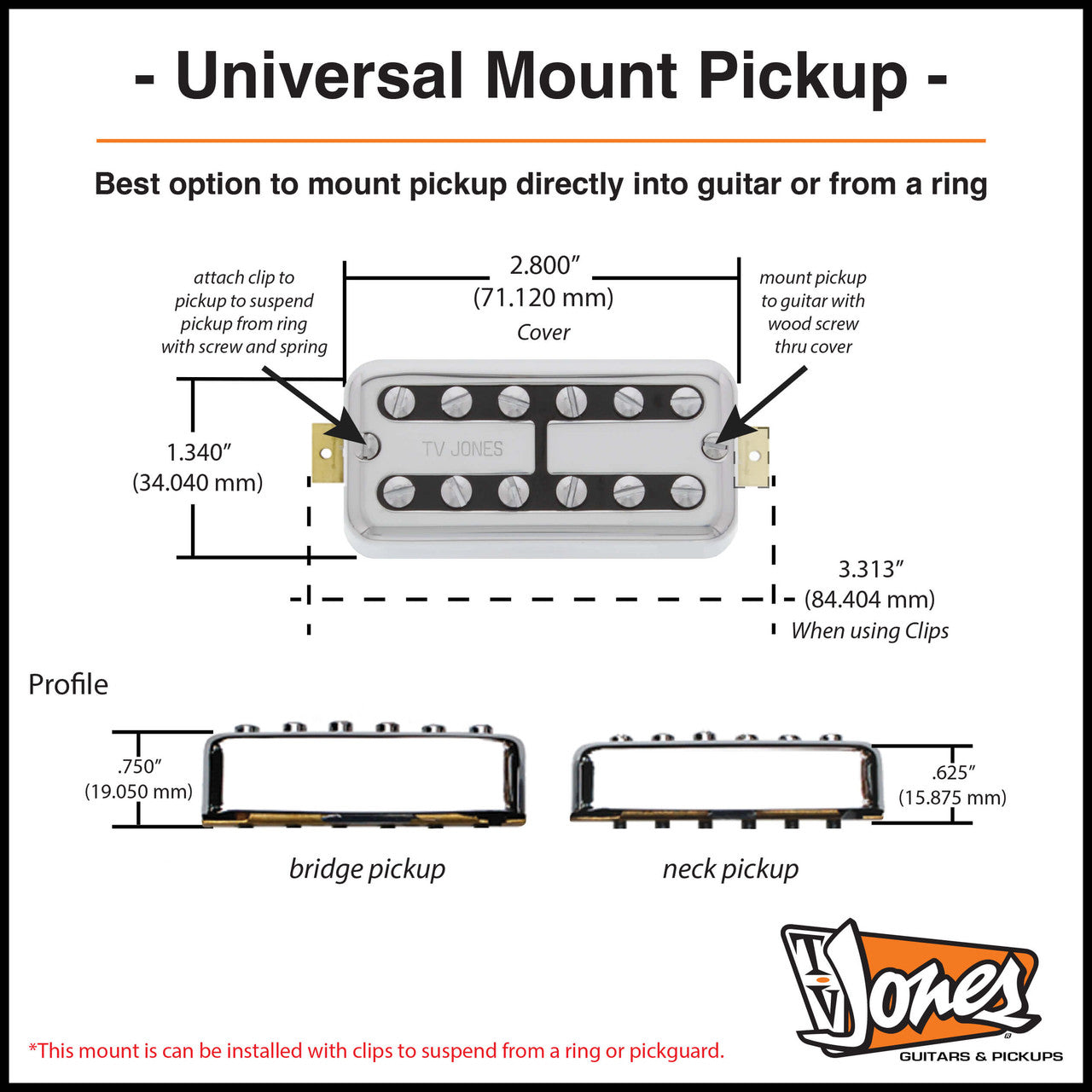

The Universal Mount is a direct drop-in replacement for guitars with standard sized Filter'Trons - with and without "ears" or "clips". This pickup comes standard with two pieces of compression rubber, 2 mounting (wood) screws, and 1 Universal Mount Clip Pack - which includes everything you will need to mount the pickups to a TV Jones ring or pickguard.

The Universal Mount can be installed two different ways:

  • As a direct drop-in replacement for guitars with standard sized Filter'Trons – use wood screws and compression rubber
  • As a replacement for a humbucker mount pickup – attach clips before installing pickup to ring or pickguard

NOTE: The Universal Mount requires one of the following TV Jones rings (unless suspending from a pickguard)


Wiring Notes
This pickup is shipped with 4-conductor wire but is ready for standard 2-conductor connection. The extra red and green wires come soldered together and taped off - to split coils, send these to ground.

Splitting coils works well with the Power'Tron because of its naturally higher output. 4-Conductor wire is also convenient for custom switching i.e. pickups combined in series or parallel.


Features:

  • Free shipping, delivery within 2 to 3 business days or less.
  • We are an authorized TV Jones dealer.
  • Blends PAF cleans with Filter'Tron characteristics
  • Darker and hotter than a TV Classic pickup
  • Smooth, silken voice
  • Rockabilly bite and twang
  • Punchy attack
  • Dynamic breakup
  • Position: neck
  • DC resistance: 5.0k
  • Inductance: 2.24H
  • Ships with 4-conductor wiring — ready for standard 2-conductor connections


Attributes

  • Color: Chrome

Technical Specifications

  • # of Strings: 6
  • Position: Neck
  • Pickup Type: Humbucker
  • Active/Passive: Passive
  • # of Conductors: 4
  • Quantity: Single
  • Magnet Material: Alnico
  • DC Resistance: 5.0k
  • Format: Filtertron
